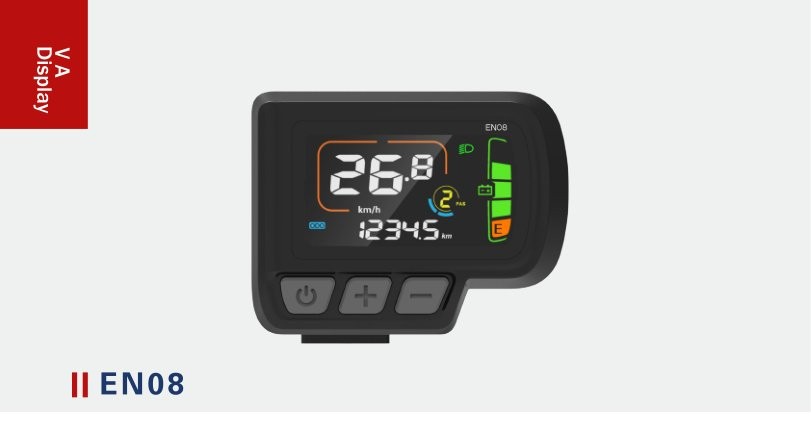

EN08 VA Display
1.9-inch entry-level VA display with integrated buttons
Overview
The EN08 is an entry-level 1.9-inch VA color display with integrated power, +, and – buttons, eliminating the need for a separate remote. It is a practical and affordable choice for standard city and commuter e-bikes.
- 1.9-inch VA color screen
- 24–60 V DC working voltage
- UART
- IP65 protection rating
- CE / RoHS / EN13849 certified

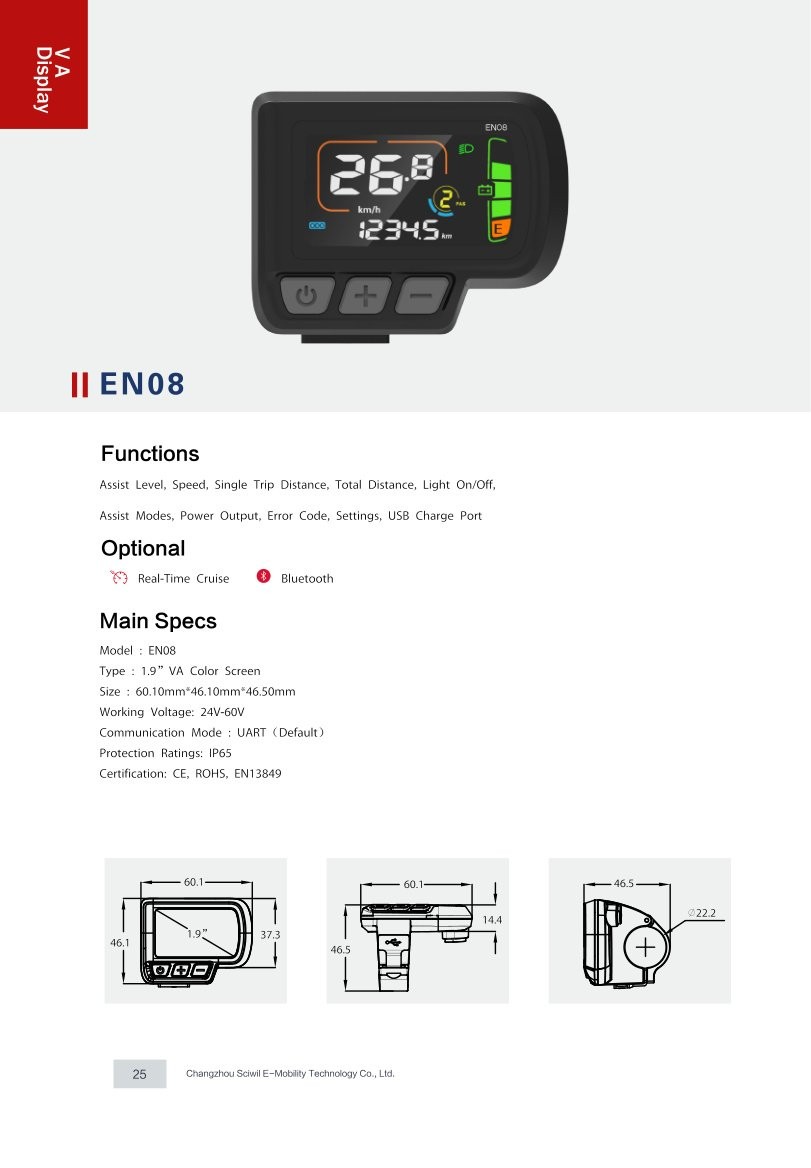

Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Settings menu
- USB charging port
Optional Features
- Real-time cruise
- Bluetooth
Technical Specifications
| Model | EN08 |
| Screen Type | 1.9-inch VA color screen |
| Working Voltage | 24–60 V DC |
| Communication | UART |
| Protection Rating | IP65 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 60.10 × 46.10 × 46.50 mm |
| Handlebar Compatibility | Ø22.2 mm |
| USB Port | Yes (charging) |
| Buttons | Integrated on unit |
Frequently Asked Questions
What communication protocols does the display support?
It supports standard UART communication.
Is the display suitable for outdoor use?
Yes, the IP65-rated housing protects against dust and water spray.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
The device operates within a wide voltage range of 24 to 60 V DC.
Does the display have a USB charging port?
Yes. It includes a USB port for charging devices on the go.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
