G20 LED Display
1.9-inch compact LED display with integrated buttons
Overview

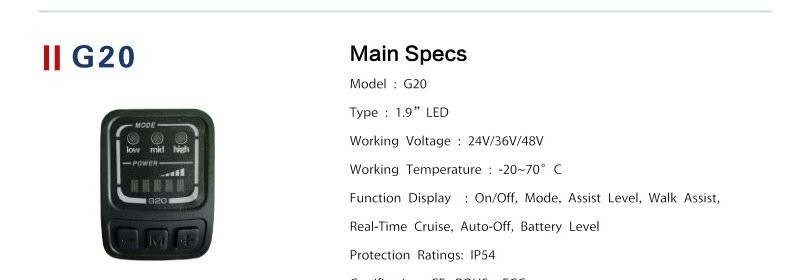

The G20 is an ultra-compact 1.9-inch LED segment display with integrated buttons. At only 11.5 mm thin, it is ideal for e-bikes where minimal handlebar space is available and only basic ride data is required.
- 1.9-inch LED segment display
- 24 / 36 / 48 V DC working voltage
- UART
- IP54 protection rating
- CE / RoHS / EN13849 certified
Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Settings menu
Optional Features
- Walk assist
- Cruise
- Auto-off

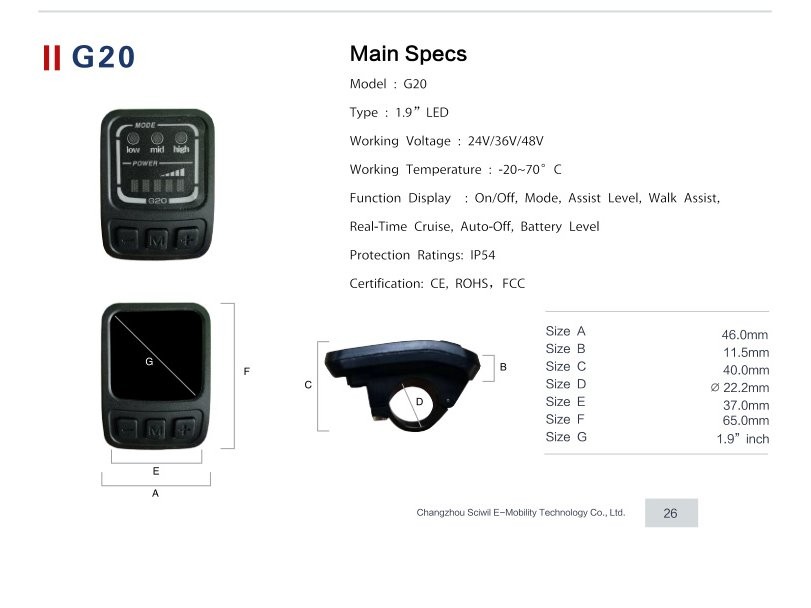

Technical Specifications
| Model | G20 |
| Screen Type | 1.9-inch LED segment display |
| Working Voltage | 24 / 36 / 48 V DC |
| Communication | UART |
| Protection Rating | IP54 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 46.00 × 11.50 × 40.00 mm |
| Handlebar Compatibility | Ø22.2 mm |
| Buttons | Integrated on unit |
Frequently Asked Questions
What communication protocols does the display support?
It supports standard UART communication.
Is the display suitable for outdoor use?
Yes, it has an IP54 rating for basic dust and splash protection.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
It is compatible with 24V, 36V and 48V battery systems.
Does the display have integrated buttons?
Yes. Control buttons are integrated on the unit for quick operation.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
