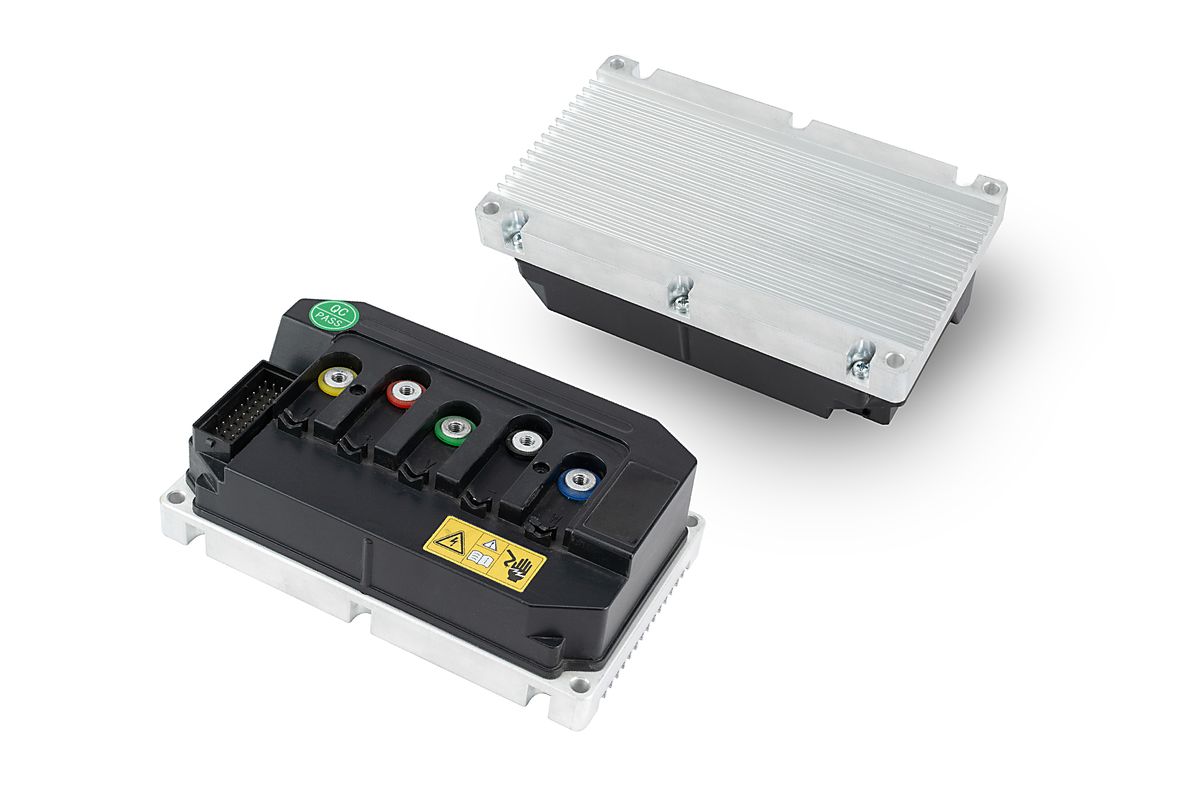

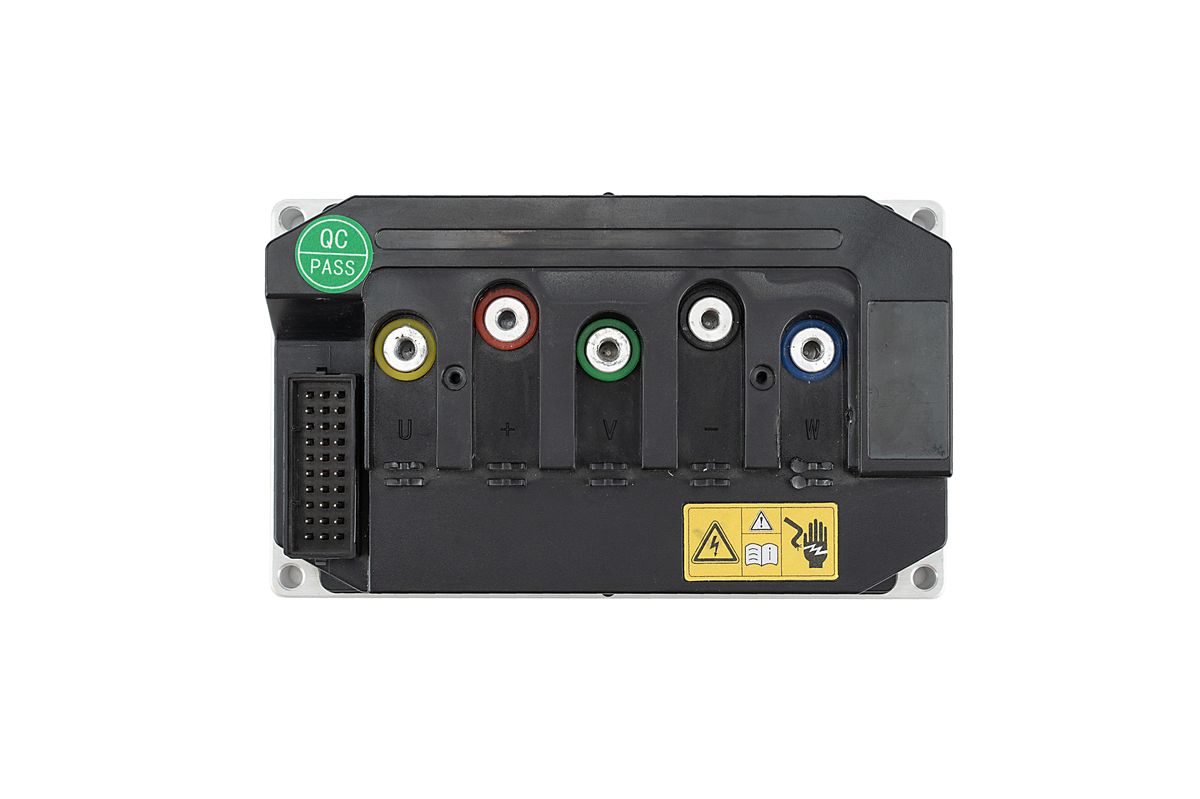

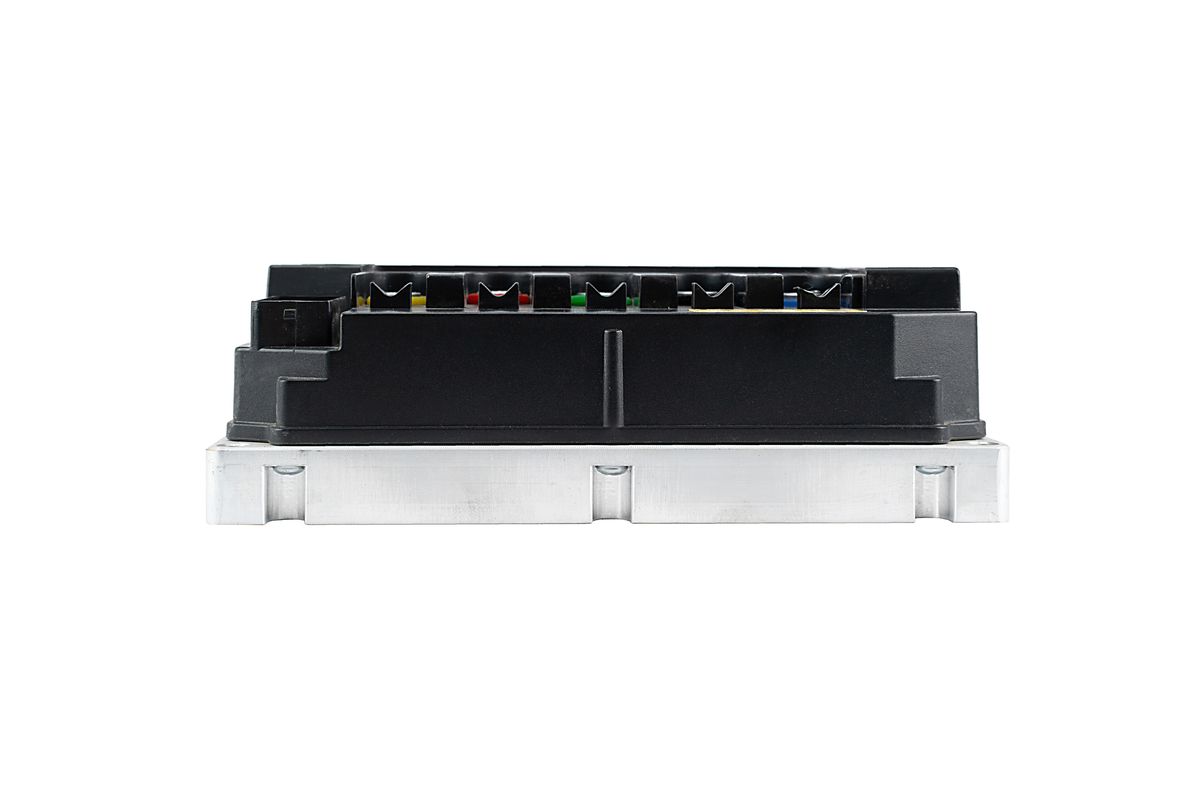

G24 Series Motor Controller
Non-isolated FOC controller for medium-power applications
Overview
The G24 Series is a non-isolated sinusoidal motor controller built on our proprietary FOC algorithm for medium-power electric vehicles. It delivers up to 97% efficiency with smooth torque control for PMSM, SynRM and induction motors, in an IP66-rated housing.
- FOC / MTPA / SVPWM / Flux Weakening
- Input voltage 25~88 V
- Efficiency up to 97%
- IP66 protection rating
- Non-Isolated Type
- CAN2.0 / 1-Wire communication
Technical Specifications
| Rated Input Voltage (DC-V) | 72 |
| Rated Input Current (DC-A) | 60 |
| Rated Output Current (Arms@60min) | 65 |
| Input Voltage Range (DC-V) | 25~88 |
| Maximum Input Current (DC-A, 120s) | 120 |
| Maximum Output Current (Apk@10s) | 360 |
| Operating Ambient Temperature (℃) | -20~+65 |
| Motor Type | PMSM / SynRM / Induction Motor |
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening |
| Motor Sensor Type | SinCos / ABZ(+PWM) / HALL ABC (select one of three) |
| Efficiency | 97% |
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall |
| Dimensions (mm) | 187*111*68 |
| Weight (kg) | <1.6 |
| Communication | CAN2.0 / 1-Wire |
| Cooling Method | Forced Air Cooling |
| Protection Rating | IP66 |
Frequently Asked Questions
What battery platforms does it support?
It supports a wide input voltage range from 25V to 88V DC, with 72V rated input voltage, covering 24V, 48V, 60V and 72V battery platforms.
What is the rated and peak output current?
It provides 65 Arms rated output current for 60 minutes and up to 360 Apk peak output current for 10 seconds.
What is the maximum efficiency of this controller?
The controller achieves an efficiency of up to 97% using advanced FOC algorithms.
Is the controller suitable for outdoor use?
Yes, it features an IP66 protection rating, making it suitable for harsh and outdoor environments.
Which motor sensors and communication interfaces are supported?
It supports Sincos, Abz (+Pwm) or Hall ABC motor sensors (select one) and CAN 2.0 / 1-Wire communication.
Can the software be customized?
Yes, the software can be customized to meet the different requirements of individual customers.
