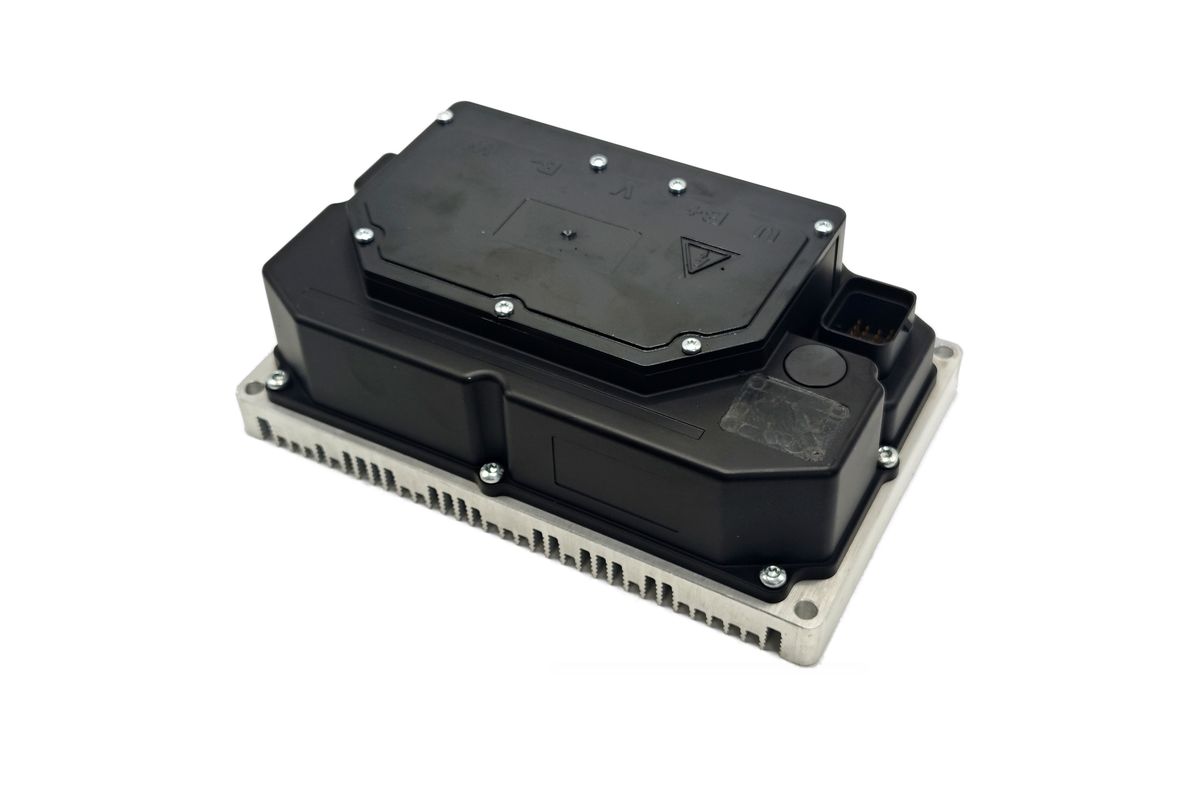

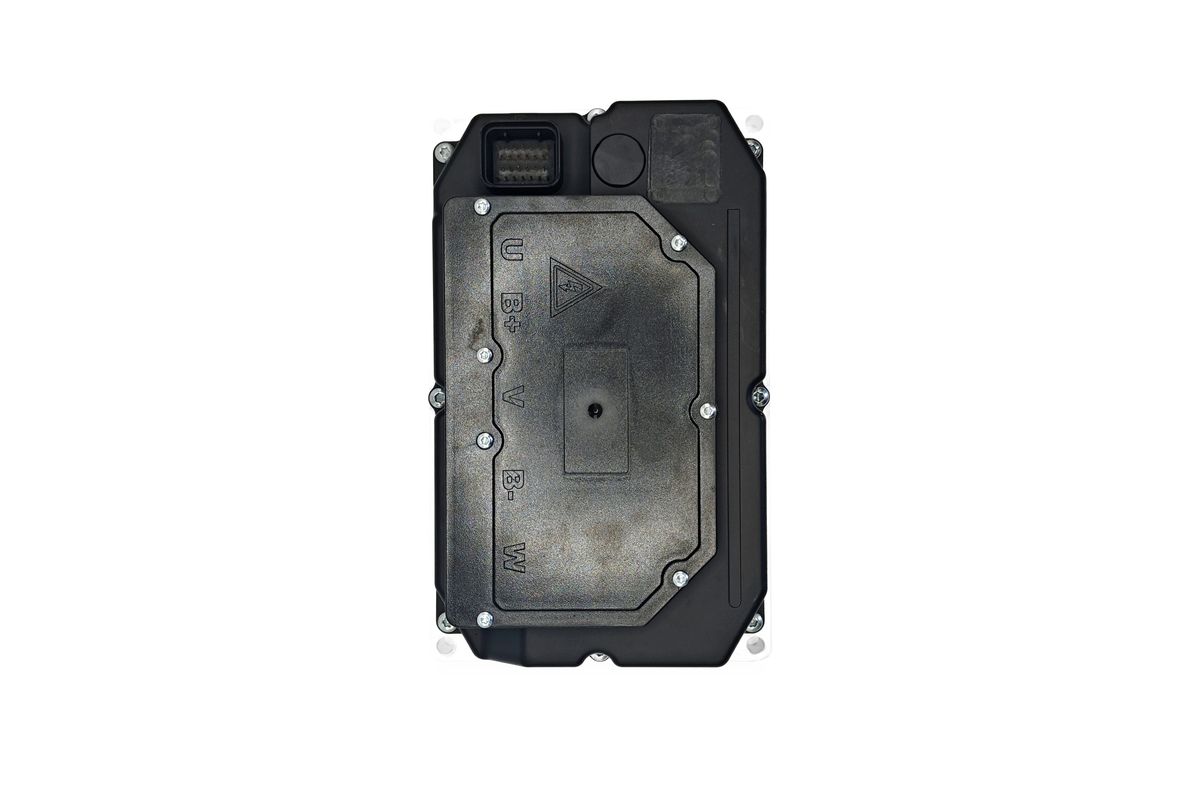

G36I Series Motor Controller
Isolated FOC controller for high-power applications
Overview
The G36I Series is an isolated sinusoidal motor controller built on our proprietary FOC algorithm for high-power electric vehicles. Isolated topology provides enhanced safety and EMC performance, with up to 98% efficiency and smooth torque control for PMSM, SynRM and induction motors in an IP66-rated housing.
- FOC / MTPA / SVPWM with flux weakening
- Efficiency up to 98%
- Internal IP67 protection rating
- Isolated Type
- CAN2.0 communication
Technical Specifications
| Parameter | DEMC36I1XXX | DEMC36I0XXXX | |
|---|---|---|---|
| Rated Input Voltage (DC-V) | 96 | 72 | |
| Rated Input Current (DC-A) | 75 | 95 | |
| Rated Output Current (Arms@30min) | 95 | 75 | |
| Input Voltage Range (DC-V) | 70~125 | 36~88 | |
| Maximum Input Current (DC-A, 30s) | 130 | 175 | |
| Maximum Output Current (Apk@10s) | 480 | 510 | |
| Operating Ambient Temperature (℃) | -20~+65 | ||
| Motor Type | PMSM / SynRM / Induction Motor | ||
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening | ||
| Motor Sensor Type | ABZ (+PWM) / HALL ABC (select one of two) | ||
| Efficiency | 98% | ||
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall | ||
| Dimensions (mm) | 205×125×73 (excluding outer teeth dimensions) | ||
| Weight (kg) | <2.5 | ||
| Communication | CAN2.0 | ||

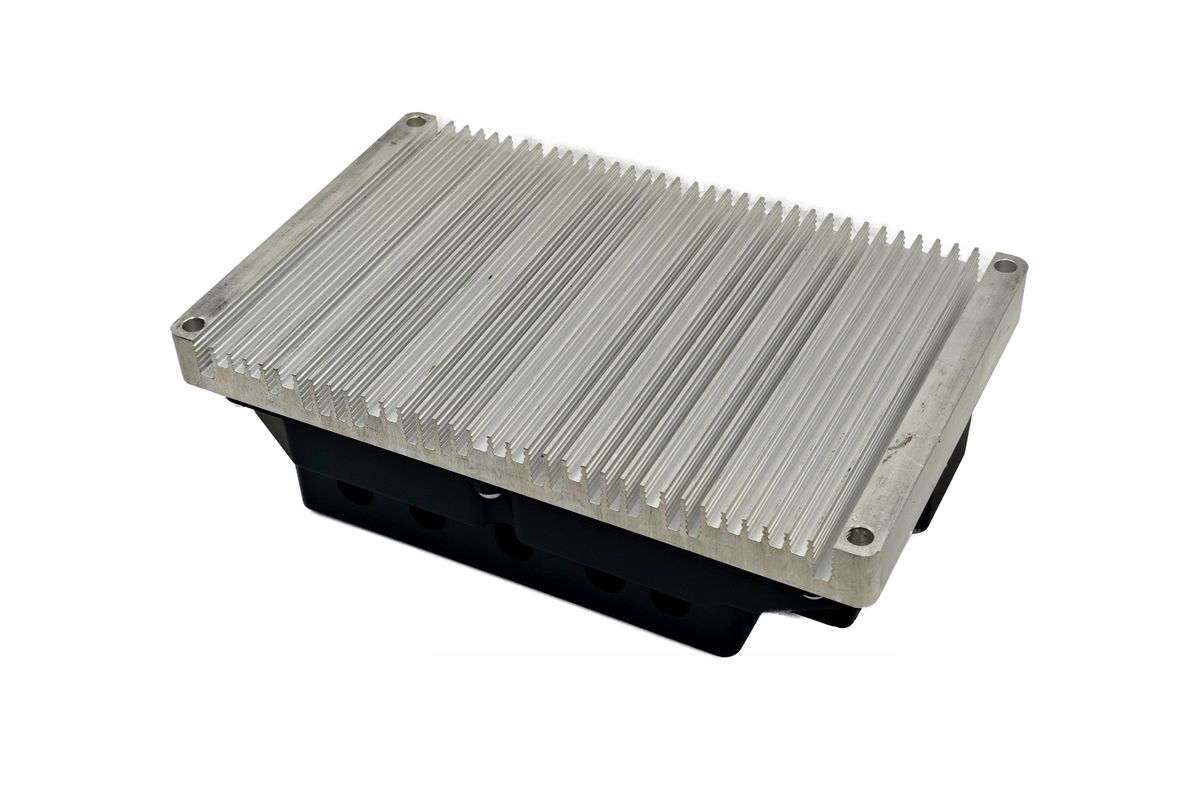

| Cooling Method | Forced Air Cooling | ||
| Protection Rating | Internal IP67 | ||
Frequently Asked Questions
What does the isolated design mean?
It features an isolated circuit architecture for enhanced electrical safety, separating control and power circuits.
What voltage models are available?
Two models: 96V (70~125V input range) and 72V (36~88V input range).
What is the rated and peak output current?
The 96V model provides 95 Arms rated (30min) / 480 Apk peak (10s); the 72V model provides 75 Arms / 510 Apk.
Is the controller suitable for outdoor use?
Yes, it features an IP67 protection rating (internal), making it suitable for harsh and wet outdoor environments.
Which motor sensors and communication are supported?
It supports ABZ (+PWM) or HALL ABC motor sensors (select one) with CAN 2.0 communication.
Can the software be customized?
Yes, the software can be customized to meet the different requirements of individual customers.
