10.5″ Single-side hub motor

10.5

Overview

10.5″ Single-side hub motor from our manufacturing partner. Rated power 350-500 W, rated speed 700-1200 rpm. Full specifications and engineering dimensions are listed below.

  • Size: 10.5″
  • Category: B motor
  • Rated power: 350-500 W
  • Rated speed: 700-1200 rpm
  • Full specifications & dimensions below

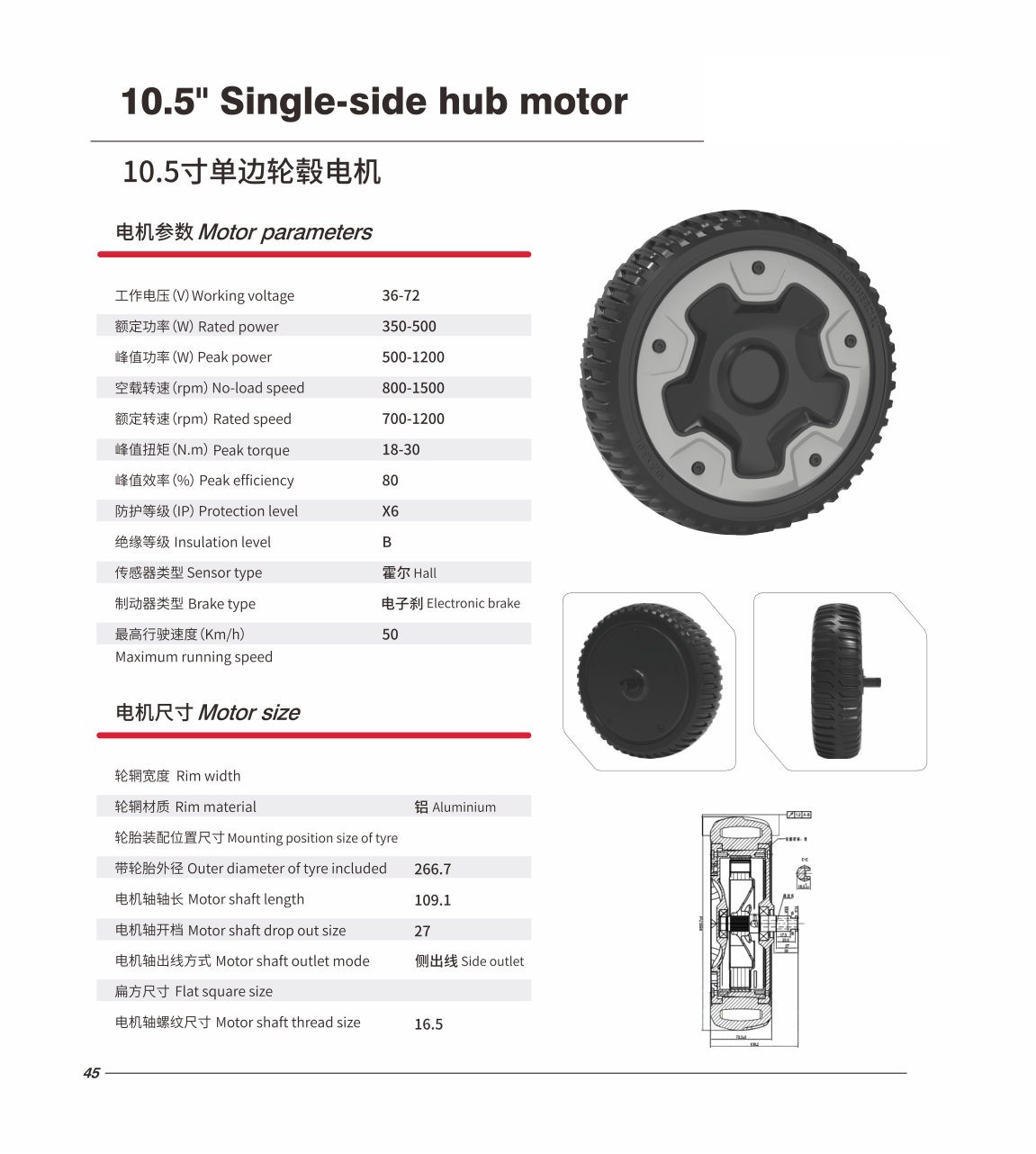

Product Views & Dimensions

10.5
10.5
10.5

Technical Specifications

Motor Parameters

Working voltage (V)36-72
Rated power (W)350-500
Peak power (W)500-1200
No-load speed (rpm)800-1500
Rated speed (rpm)700-1200
Peak torque (N.m)18-30
Peak efficiency (%)80
Protection level (IP)X6
Insulation levelB
Sensor typeHall
Brake typeElectronic brake
Maximum running speed (km/h)50

Motor Size

Rim materialAluminium
Outer diameter of tyre included266.7
Motor shaft length109.1
Motor shaft drop out size27
Motor shaft outlet modeSide outlet
Motor shaft thread size16.5

Frequently Asked Questions

What voltage is this motor rated for?

This motor is rated for 36-72V operation. Please confirm your battery pack voltage matches before ordering.

What is the rated and peak power of this motor?

The rated power is 350-500W, and peak power reaches 500-1200W for short-duration high-load operation.

What are the speed and torque ratings?

Rated speed is 700-1200rpm; peak torque is 18-30N.m. Actual performance depends on the controller settings and the load.

What is the protection level of this motor?

The motor is rated IPX6, so it is protected against dust and water ingress to that level when the housing and connectors are properly sealed.

Which position sensor does this motor use?

It uses a HALL position sensor, providing accurate rotor position feedback for smooth and efficient operation.

What wheel size does this motor fit?

This motor is designed for 10.5-inch wheel fitment. Please check the flange and axle dimensions against your rim before purchase.
