12″ 72V15000W Track Edition
Overview
12″ 72V15000W Track Edition from our manufacturing partner. Rated power 15000 W, rated speed 1200 rpm. Full specifications and engineering dimensions are listed below.
- Size: 12″
- Category: A motor
- Rated power: 15000 W
- Rated speed: 1200 rpm
- Full specifications & dimensions below

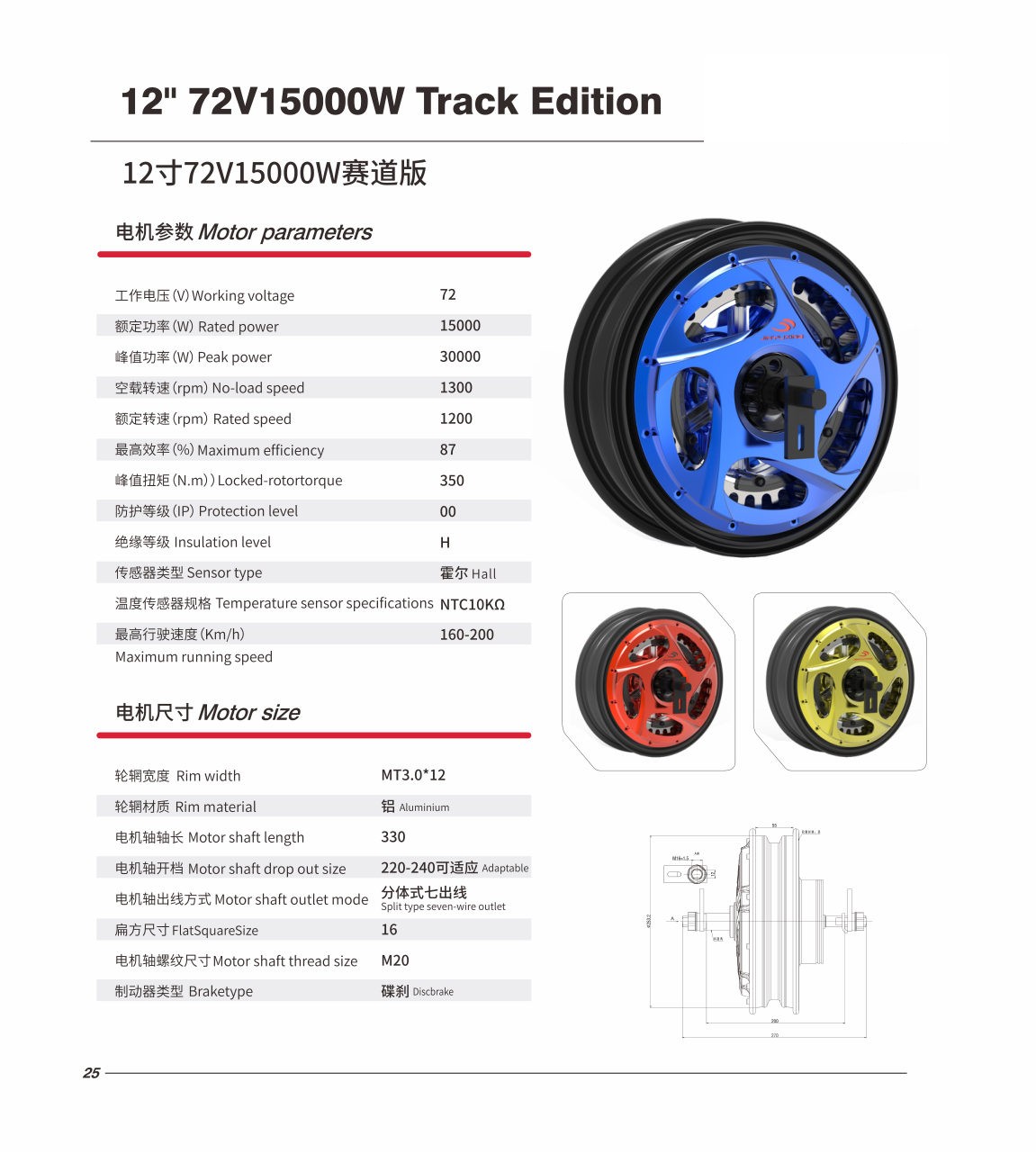

Product Views & Dimensions
Technical Specifications
Motor Parameters
| Working voltage (V) | 72 |
| Rated power (W) | 15000 |
| Peak power (W) | 30000 |
| No-load speed (rpm) | 1300 |
| Rated speed (rpm) | 1200 |
| Maximum efficiency (%) | 87 |
| Locked-rotor torque (N.m) | 350 |
| Protection level (IP) | 00 |
| Insulation level | H |
| Sensor type | Hall |
| Temperature sensor specifications | NTC10KΩ |
| Maximum running speed (km/h) | 160-200 |
Motor Size
| Rim width | MT3.0*12 |
| Rim material | Aluminium |
| Motor shaft length | 330 |
| Motor shaft drop out size | 220-240 adaptable |
| Motor shaft outlet mode | Split type seven-wire outlet |
| Flat square size | 16 |
| Motor shaft thread size | M20 |
| Brake type | Disc brake |
Frequently Asked Questions
What voltage is this motor rated for?
This motor is rated for 72V operation. Please confirm your battery pack voltage matches before ordering.
What is the rated and peak power of this motor?
The rated power is 15000W, and peak power reaches 30000W for short-duration high-load operation.
What are the speed and torque ratings?
Rated speed is 1200rpm; peak torque is 350N.m. Actual performance depends on the controller settings and the load.
What is the protection level of this motor?
The motor is rated IP00, so it is protected against dust and water ingress to that level when the housing and connectors are properly sealed.
Which position sensor does this motor use?
It uses a HALL position sensor, providing accurate rotor position feedback for smooth and efficient operation.
What wheel size does this motor fit?
This motor is designed for 12-inch wheel fitment. Please check the flange and axle dimensions against your rim before purchase.
