Golden eagle series motor
Overview
Golden eagle series motor from our manufacturing partner. Rated power 400-1200 W, rated speed 400-700 rpm. Full specifications and engineering dimensions are listed below.
- Size: 10″
- Category: A motor
- Rated power: 400-1200 W
- Rated speed: 400-700 rpm
- Full specifications & dimensions below

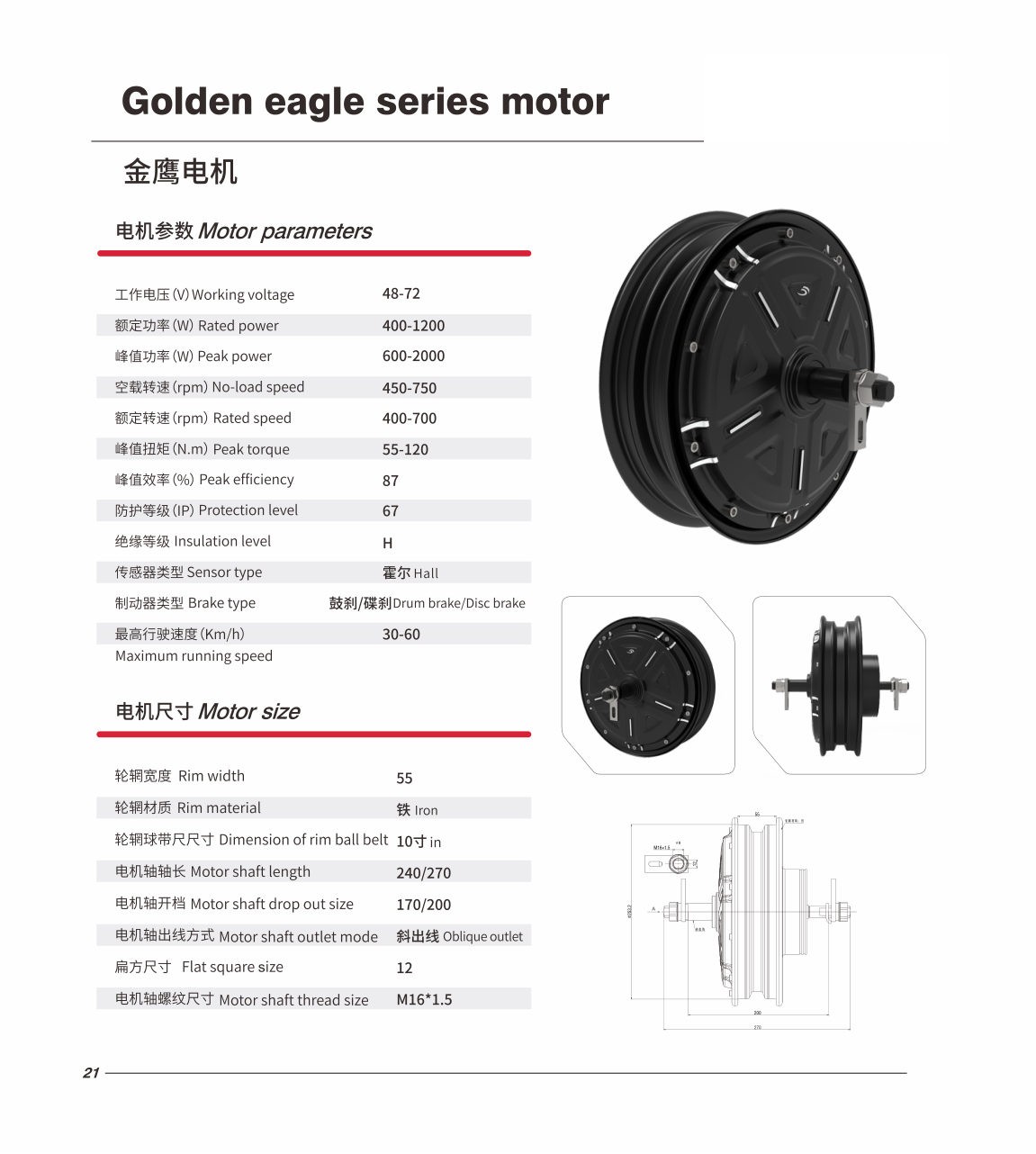

Product Views & Dimensions
Technical Specifications
Motor Parameters
| Working voltage (V) | 48-72 |
| Rated power (W) | 400-1200 |
| Peak power (W) | 600-2000 |
| No-load speed (rpm) | 450-750 |
| Rated speed (rpm) | 400-700 |
| Peak torque (N.m) | 55-120 |
| Peak efficiency (%) | 87 |
| Protection level (IP) | 67 |
| Insulation level | H |
| Sensor type | Hall |
| Brake type | Drum brake/Disc brake |
| Maximum running speed (km/h) | 30-60 |
Motor Size
| Rim width | 55 |
| Rim material | Iron |
| Dimension of rim ball belt | 10 in |
| Motor shaft length | 240/270 |
| Motor shaft drop out size | 170/200 |
| Motor shaft outlet mode | Oblique outlet |
| Flat square size | 12 |
| Motor shaft thread size | M16*1.5 |
Frequently Asked Questions
What voltage is this motor rated for?
This motor is rated for 48-72V operation. Please confirm your battery pack voltage matches before ordering.
What is the rated and peak power of this motor?
The rated power is 400-1200W, and peak power reaches 600-2000W for short-duration high-load operation.
What are the speed and torque ratings?
Rated speed is 400-700rpm; peak torque is 55-120N.m. Actual performance depends on the controller settings and the load.
What is the protection level of this motor?
The motor is rated IP67, so it is protected against dust and water ingress to that level when the housing and connectors are properly sealed.
Which position sensor does this motor use?
It uses a HALL position sensor, providing accurate rotor position feedback for smooth and efficient operation.
Can the specification be changed for bulk orders?
This model is supplied as a standard catalog product with fixed specifications – the motor itself cannot be modified. If you need a different voltage or power rating, we can recommend an alternative model from the same series. Please send us your target specification and we will advise the closest option.
