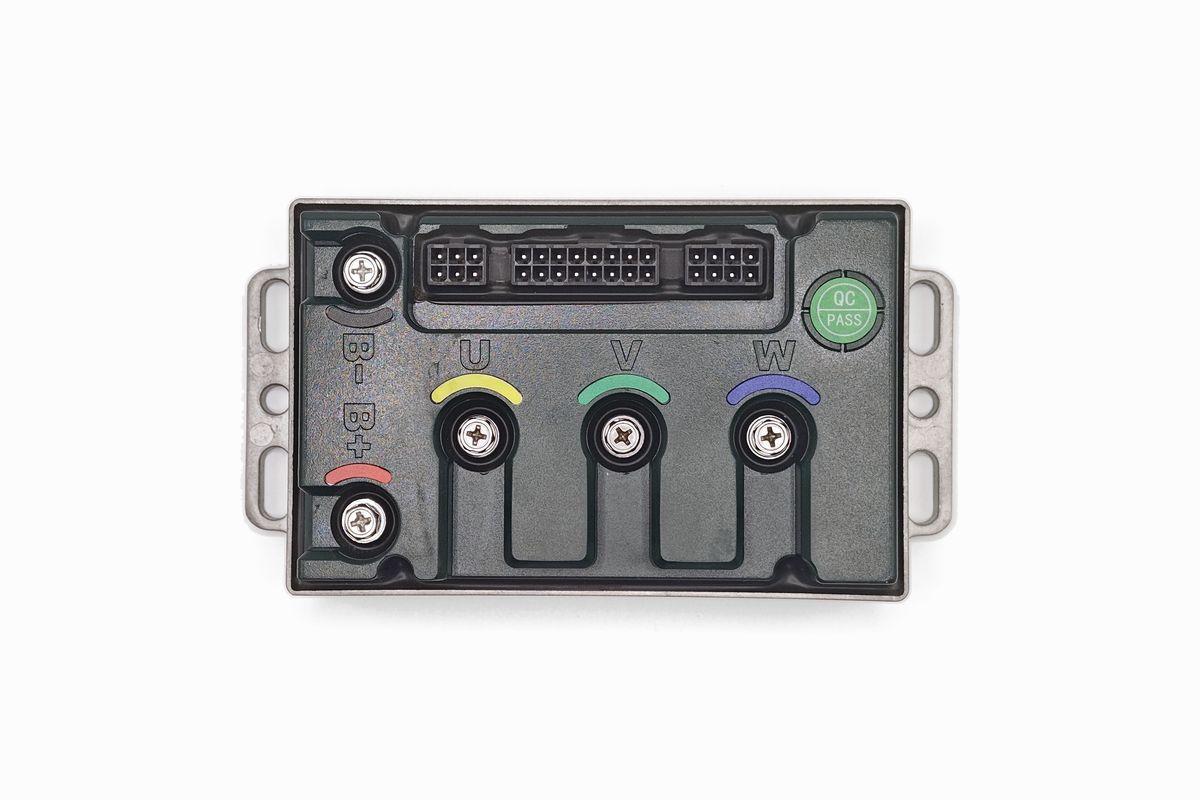

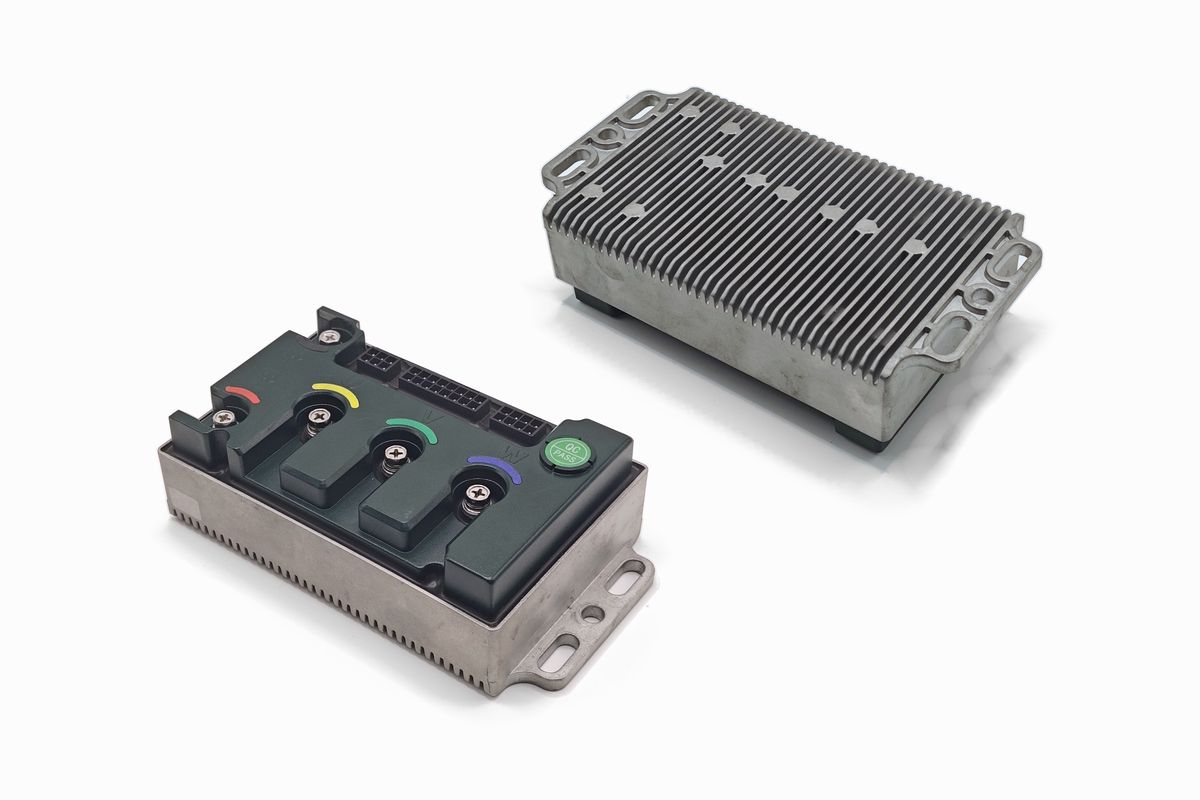

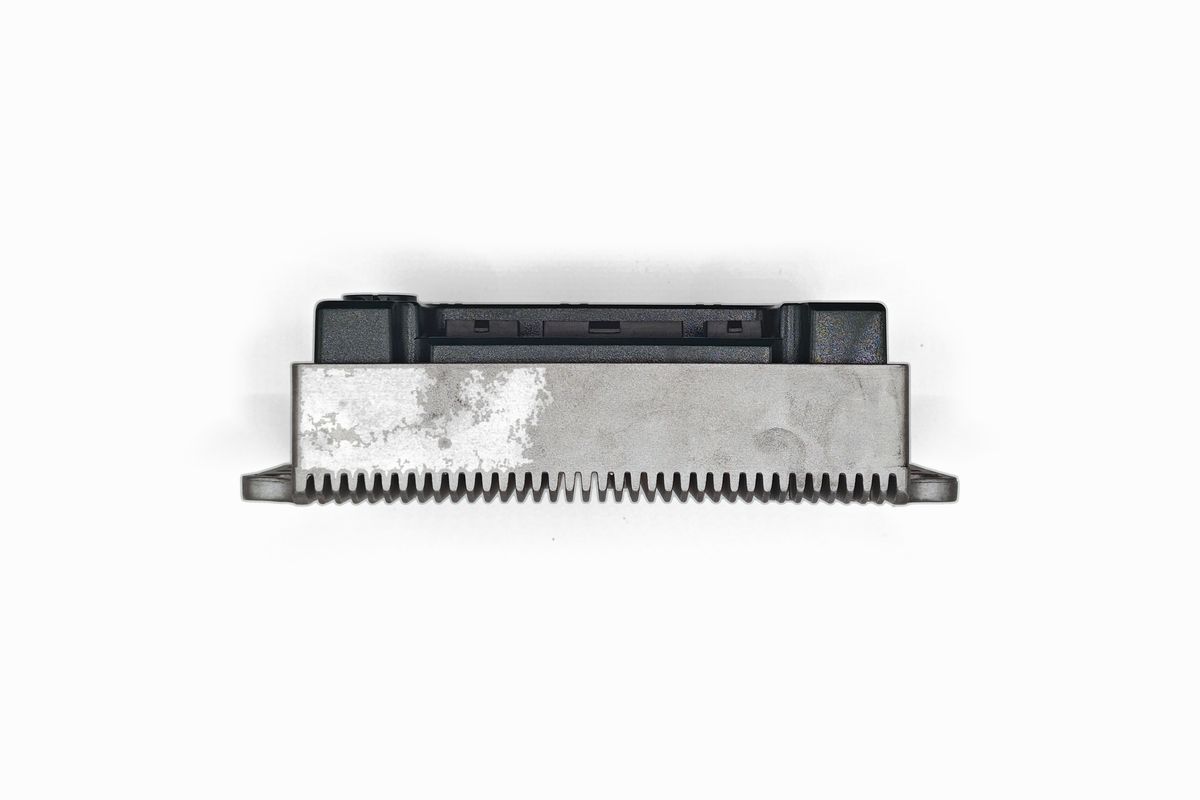

T12 Series Motor Controller
Compact non-isolated FOC controller with 36–88 V input
Overview
The T12 Series is a compact, non-isolated sinusoidal motor controller built on our proprietary FOC algorithm. It delivers up to 97% efficiency with smooth torque control for PMSM, SynRM and induction motors, in an IP66-rated housing suitable for harsh outdoor environments.
- FOC / MTPA / SVPWM with flux weakening
- Efficiency up to 97%
- IP66 protection rating
- Non-Isolated Type
- Built-in Bluetooth Optional
- CAN2.0 / 1-Wire / 485 communication
Technical Specifications
| Parameter | DEMCT1201 | DEMCT1211 | DEMCT1221 | |
|---|---|---|---|---|
| Rated Input Voltage (DC-V) | 36~72 | 36~72 | 36~72 | |
| Rated Input Current (DC-A) | 30 | 40 | 50 | |
| Rated Output Current (AC- A@30min) | 45 | 60 | 80 | |
| Input Voltage Range (DC-V) | 36~88 | 36~88 | 36~88 | |
| Maximum Input Current (DC-A, 120s) | 60 | 80 | 100 | |
| Maximum Output Current (AC- A@10s) | 220 | 260 | 300 | |
| Operating Ambient Temperature (℃) | -20~+65 | |||
| Motor Type | PMSM / SynRM / Induction Motor | |||
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening | |||
| Motor Sensor Type | ABZ (+PWM) / HALL ABC (select one of two) | |||
| Efficiency | 97% | |||
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall | |||
| Dimensions (mm) | 180×96×51 | |||
| Weight (kg) | <1.2 | |||
| Communication | CAN2.0 / 1-Wire / 485 | |||
| Cooling Method | Forced Air Cooling | |||
| Protection Rating | IP66 | |||
