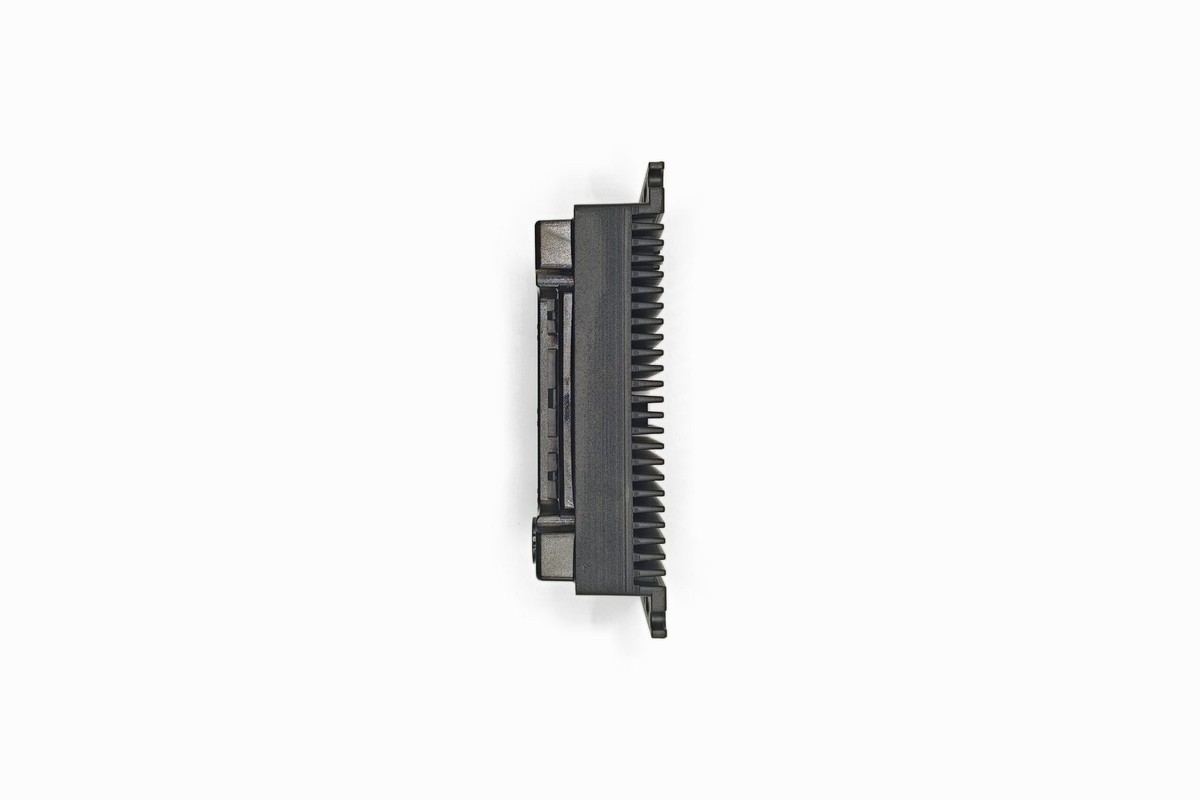

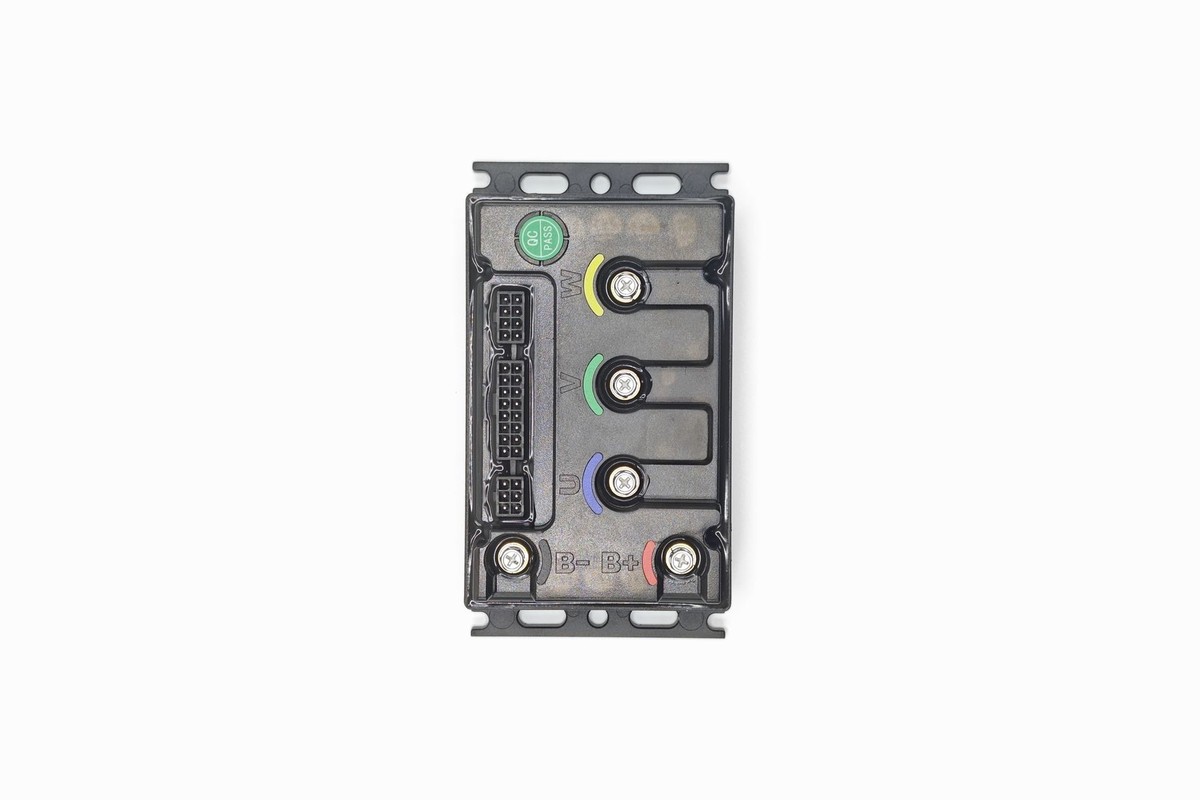

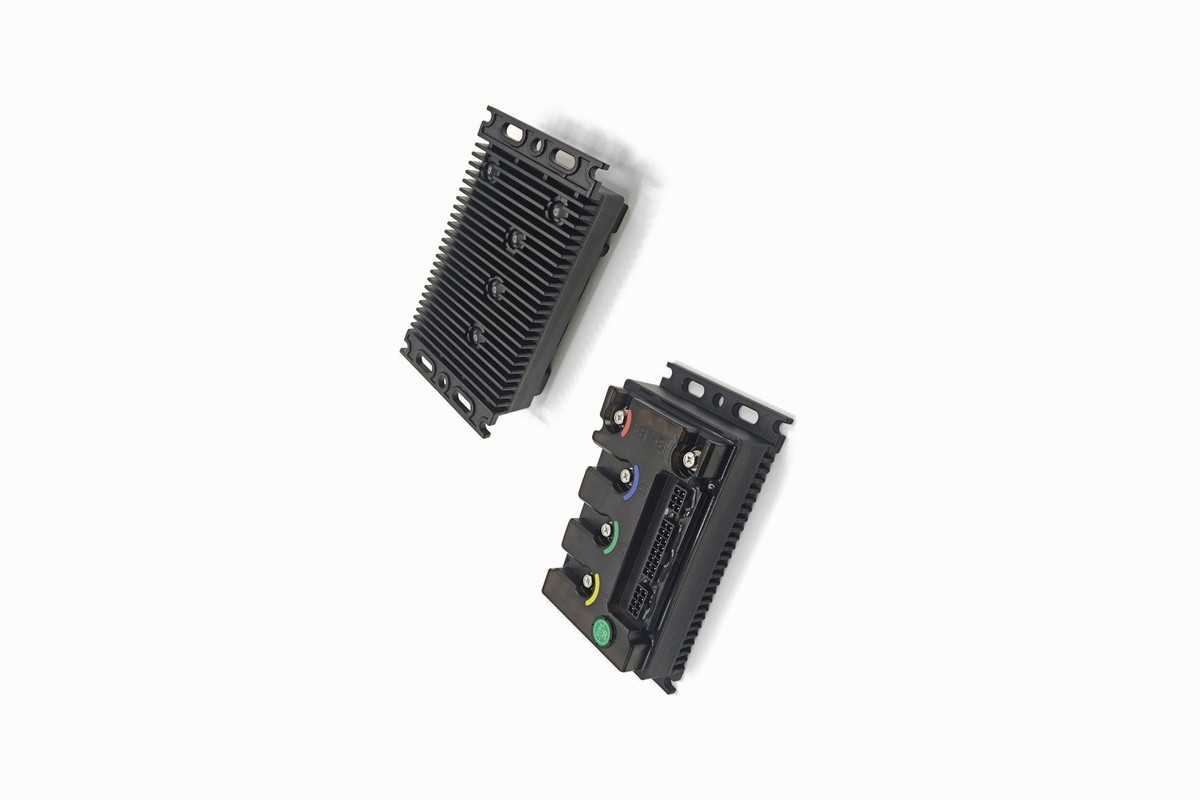

T18 Series Motor Controller
Compact non-isolated FOC controller with 36–88 V input
Overview
The T18 Series is a compact, non-isolated sinusoidal motor controller built on our proprietary FOC algorithm. It delivers up to 97% efficiency with smooth torque control for PMSM, SynRM and induction motors, in an IP66-rated housing suitable for harsh outdoor environments.
- FOC / MTPA / SVPWM / Flux Weakening
- Input voltage 36~88 V
- Efficiency up to 97%
- IP66 protection rating
- Non-Isolated Type
- Built-in Bluetooth Optional
Technical Specifications
| Rated Input Voltage (DC-V) | 36~72 |
| Rated Input Current (DC-A) | 50 |
| Rated Output Current (AC- A@30min) | 50 |
| Input Voltage Range (DC-V) | 36~88 |
| Maximum Input Current (DC-A, 120s) | 120 |
| Maximum Output Current (AC-A peak@10s) | 360 |
| Operating Ambient Temperature (℃) | -20~+65 |
| Motor Type | PMSM / SynRM / Induction Motor |
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening |
| Motor Sensor Type | ABZ (+PWM) / HALL ABC (select one of two) |
| Efficiency | 97% |
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall |
| Dimensions (mm) | 180*96*51 |
| Weight (kg) | <1.2 |
| Communication | CAN2.0 / 1-Wire / Serial |
| Cooling Method | Forced Air Cooling |
| Protection Rating | IP66 |
