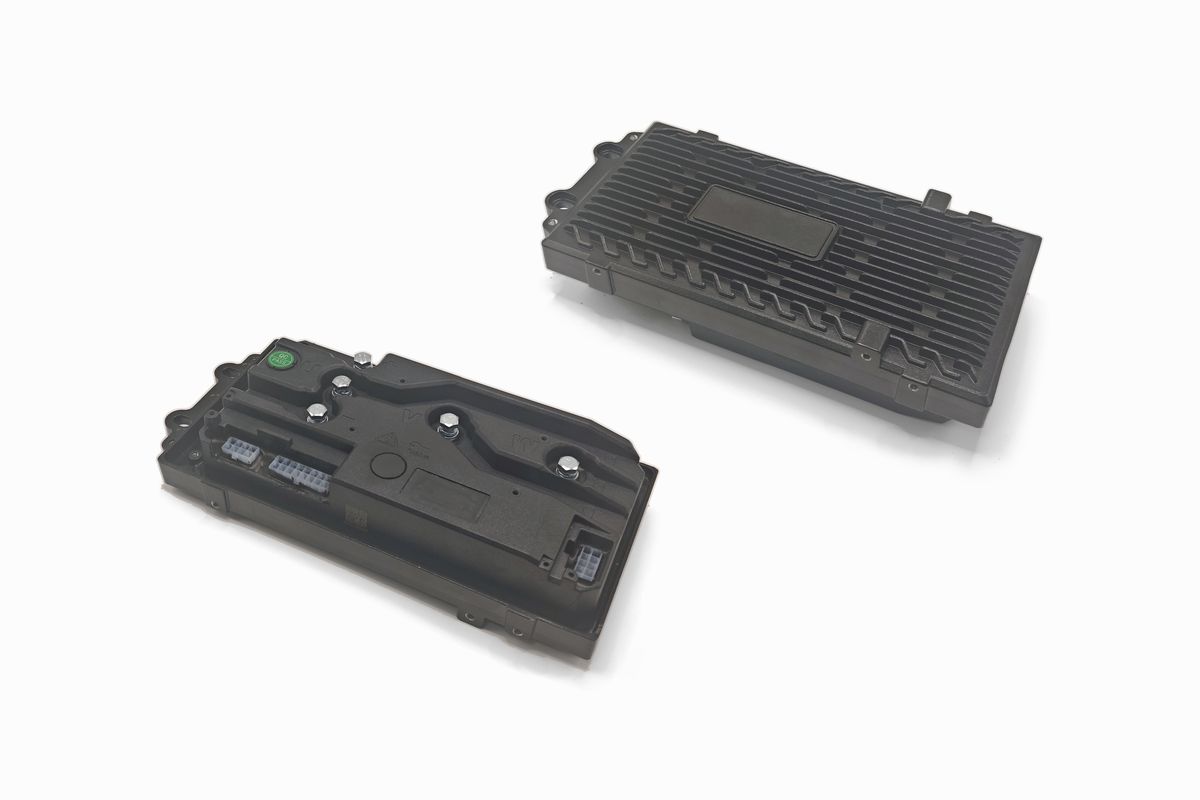

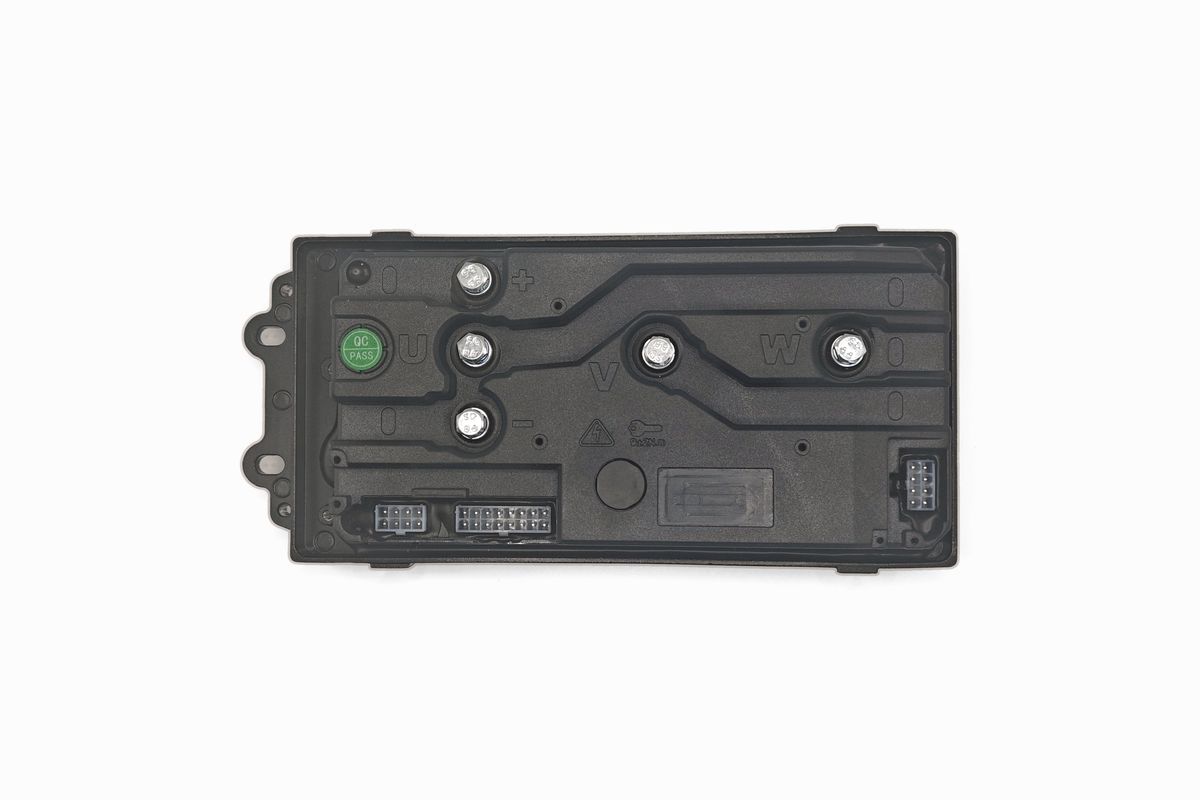

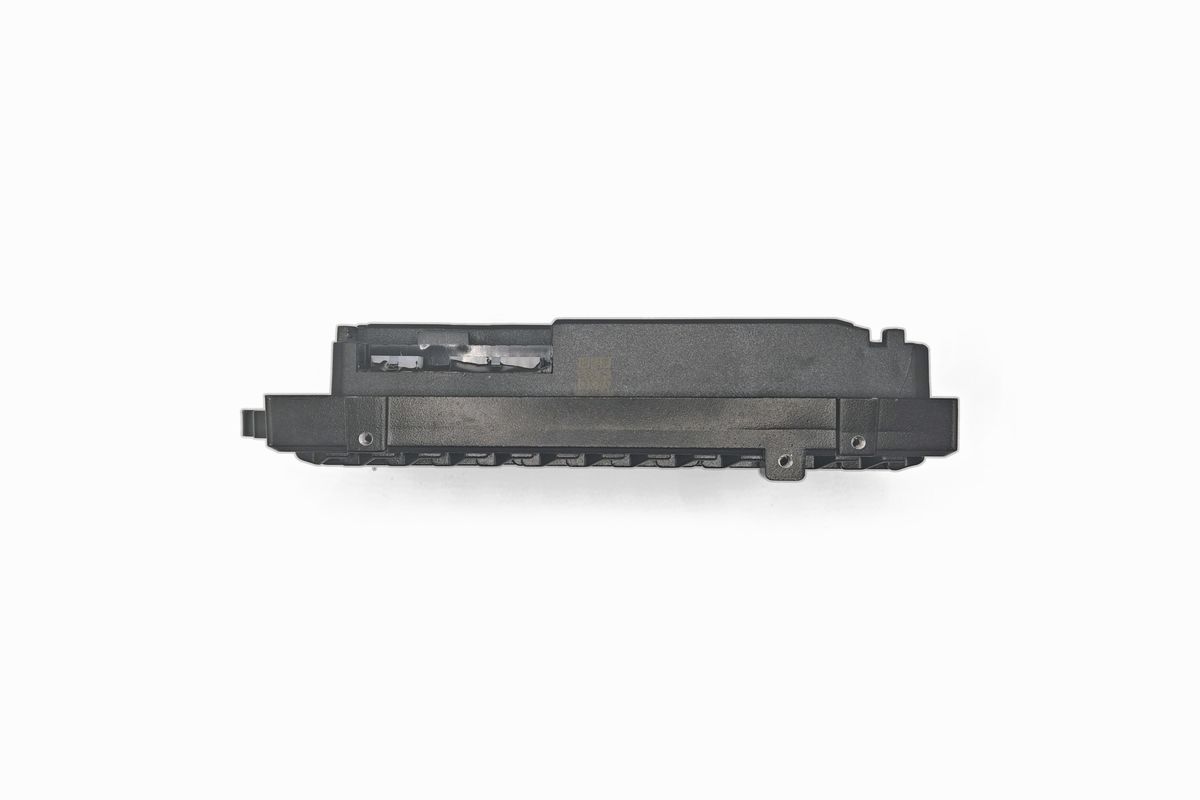

T30 Series Motor Controller
High-power FOC controller with built-in Bluetooth and 6-axis gyroscope
Overview
The T30 Series is a high-power, non-isolated sinusoidal motor controller built on our proprietary FOC algorithm, with built-in Bluetooth and a built-in 6-axis gyroscope as standard. It delivers up to 98% efficiency with smooth torque control for PMSM, SynRM and induction motors, in an IP67-rated housing.
- FOC / MTPA / SVPWM with flux weakening
- Efficiency up to 98%
- IP67 protection rating
- Non-Isolated Type
- Built-in Bluetooth
- Built-in 6-Axis Gyroscope
Technical Specifications
| Parameter | DEMCT3000 | DEMCT3001 |
|---|---|---|
| Rated Input Voltage (DC-V) | 72 | 96 |
| Rated Input Current (DC-A) | 120 | 110 |
| Rated Output Current (Arms@30min) | 130 | 105 |
| Input Voltage Range (DC-V) | 36~88 | 60~125 |
| Maximum Input Current (DC-A, 60s) | 350 | 350 |
| Maximum Output Current (Apk@10s) | 750 | 700 |
| Operating Ambient Temperature (℃) | -20~+65 | |
| Motor Type | PMSM / SynRM / Induction Motor | |
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening | |
| Motor Sensor Type | ABZ+PWM | |
| Efficiency | 98% | |
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall | |
| Dimensions (mm) | 278*119*54 | |
| Weight (kg) | <2.3 | |
| Communication | CAN2.0 / 1-Wire | |
| Cooling Method | Forced Air Cooling | |
| Protection Rating | IP67 | |
Frequently Asked Questions
What is the rated and peak output current?
The 72V model provides 130 Arms rated (30min) / 750 Apk peak (10s); the 96V model provides 105 Arms / 700 Apk.
What voltage models are available?
Two models: 72V (36~88V input range) and 96V (60~125V input range), for 14-16kW drive systems.
What is the maximum efficiency?
The controller achieves an efficiency of up to 98% using advanced FOC algorithms.
Is the controller suitable for outdoor use?
Yes, it features an IP67 protection rating, making it suitable for harsh and wet outdoor environments.
Which motor sensors and communication are supported?
It supports ABZ+PWM motor sensor and CAN 2.0 / 1-Wire communication.
Can the software be customized?
Yes, the software can be customized to meet the different requirements of individual customers.
