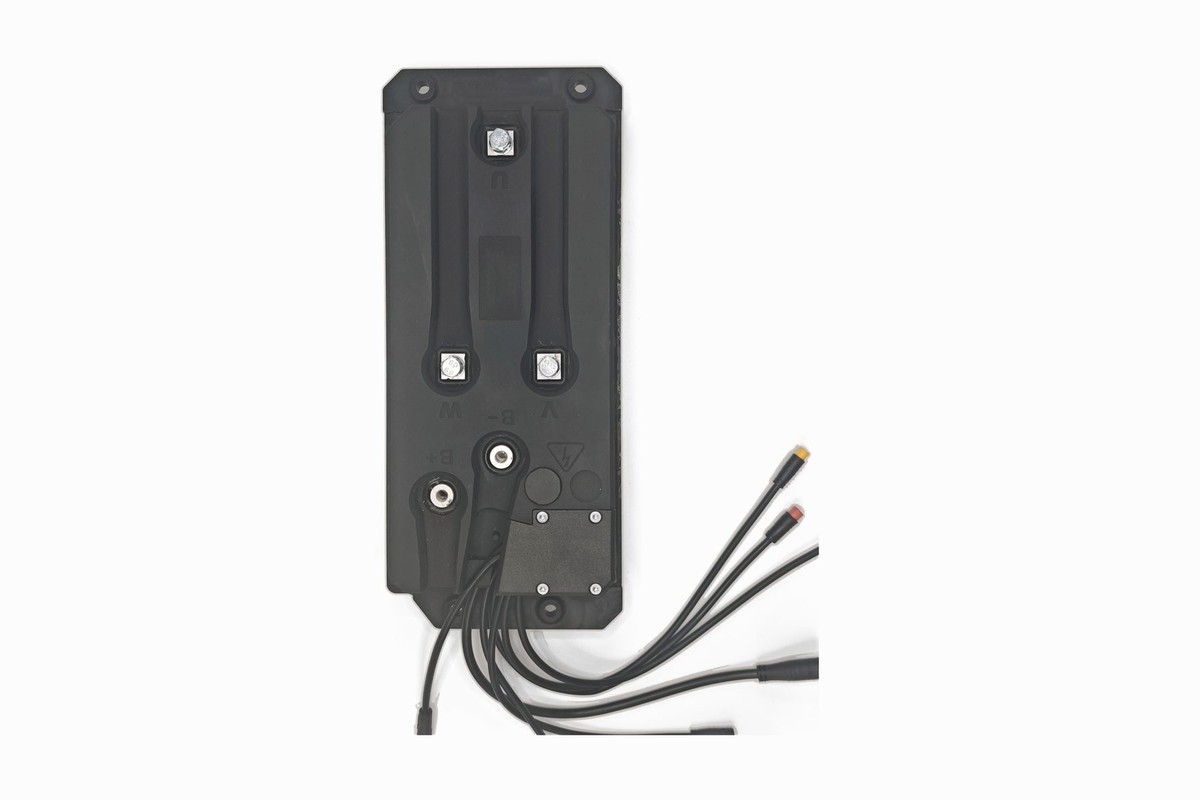

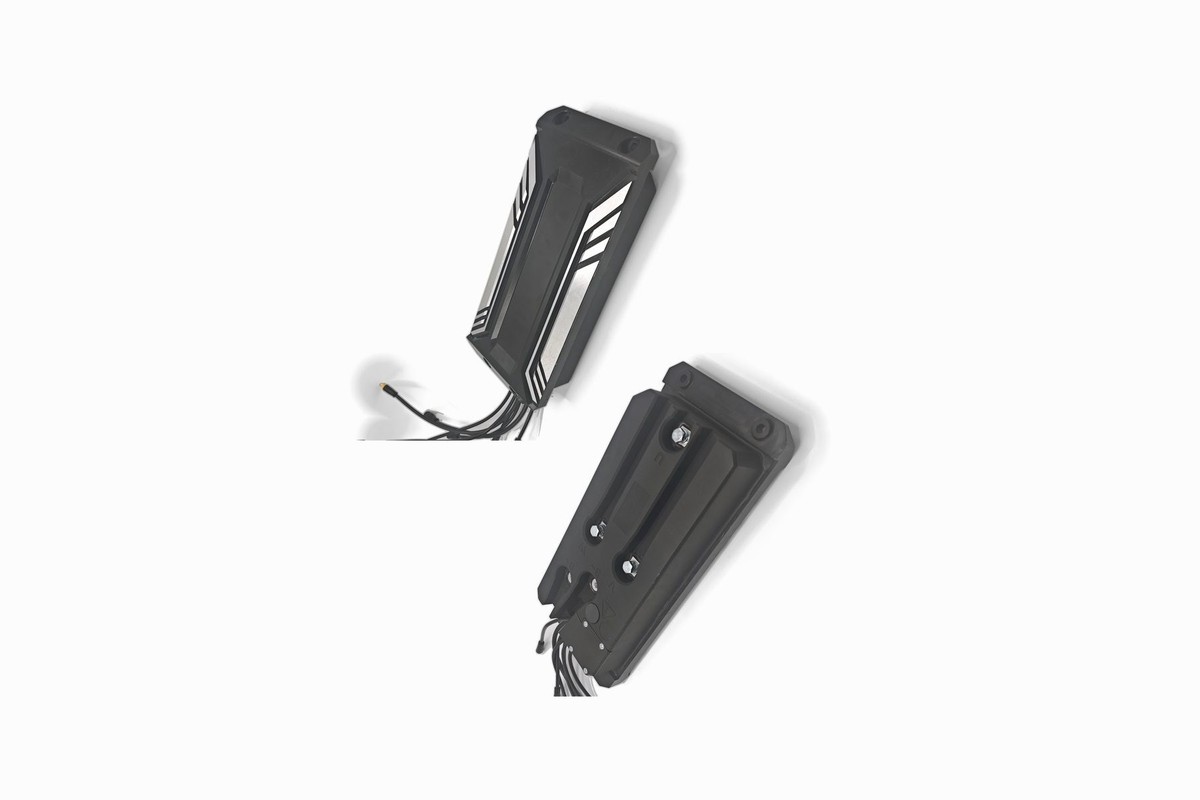

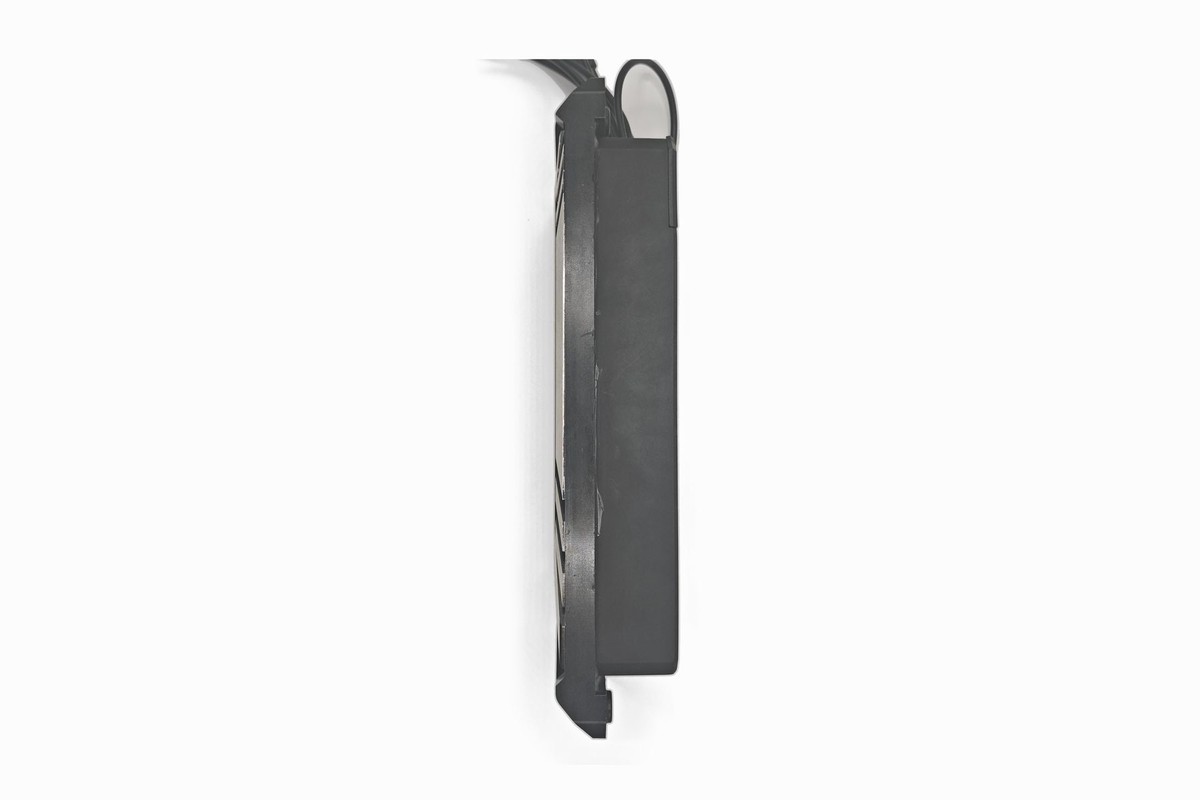

T48 Series Motor Controller
Isolated high-power FOC controller with built-in Bluetooth and 6-axis gyroscope
Overview
The T48 Series is an isolated, high-power sinusoidal motor controller built on our proprietary FOC algorithm, with built-in Bluetooth and a built-in 6-axis gyroscope as standard. Isolated topology provides enhanced safety and EMC performance, with up to 98% efficiency and IP67 protection.
- FOC / MTPA / SVPWM with flux weakening
- Efficiency up to 98%
- IP67 protection rating
- Isolated Type
- Built-in Bluetooth
- Built-in 6-Axis Gyroscope
Technical Specifications
| Parameter | DEMCT48I00 | DEMCT48I01 |
|---|---|---|
| Rated Input Voltage (DC-V) | 72 | 96 |
| Rated Input Current (DC-A) | 180 | 150 |
| Rated Output Current (Arms@30min) | 155 | 130 |
| Input Voltage Range (DC-V) | 36~88 | 60~125 |
| Maximum Input Current (DC-A, 60s) | 350 | 350 |
| Maximum Output Current (Apk@10s) | 800 | 750 |
| Operating Ambient Temperature (℃) | -20~+65 | |
| Motor Type | PMSM / SynRM / Induction Motor | |
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening | |
| Motor Sensor Type | ABZ+PWM | |
| Efficiency | 98% | |
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall | |
| Dimensions (mm) | 278*129*56 | |
| Weight (kg) | <2.3 | |
| Communication | CAN2.0 / 1-Wire | |
| Cooling Method | Forced Air Cooling | |
| Protection Rating | IP67 | |
Frequently Asked Questions
What does the isolated design mean?
It features an isolated circuit architecture for enhanced electrical safety, separating control and power circuits.
What voltage models are available?
Two models: 72V (36~88V input range) and 96V (60~125V input range).
What is the rated and peak output current?
The 72V model provides 155 Arms rated (30min) / 800 Apk peak (10s); the 96V model provides 130 Arms / 750 Apk.
Is the controller suitable for outdoor use?
Yes, it features an IP67 protection rating, making it suitable for harsh and wet outdoor environments.
Which motor sensors and communication are supported?
It supports ABZ+PWM motor sensor with CAN 2.0 / 1-Wire communication.
Can the software be customized?
Yes, the software can be customized to meet the different requirements of individual customers.
