SW-A90(T) TFT Display
5.0-inch large TFT color display with optional touchscreen
Overview

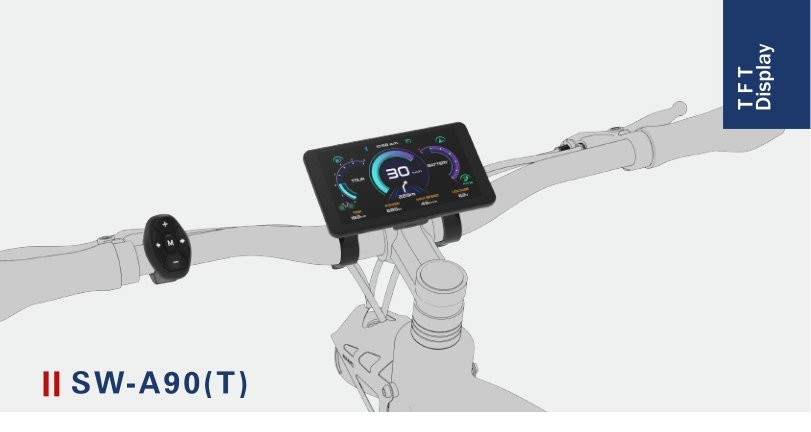

The SW-A90(T) is a large 5.0-inch TFT color display for electric bicycles and light EVs. It features an optional capacitive touchscreen, a large easy-to-read interface, and a robust IP67-rated housing. The ambient light sensor automatically adjusts brightness, and the separate handlebar keypad enables safe control while riding.
- 5.0-inch TFT color screen (optional touchscreen)
- 12–100 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP67 protection rating
- CE / RoHS / EN13849 certified
Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
- USB charging port
Optional Features
- Touchscreen option
- NFC function
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- Dual battery
- Customized layout

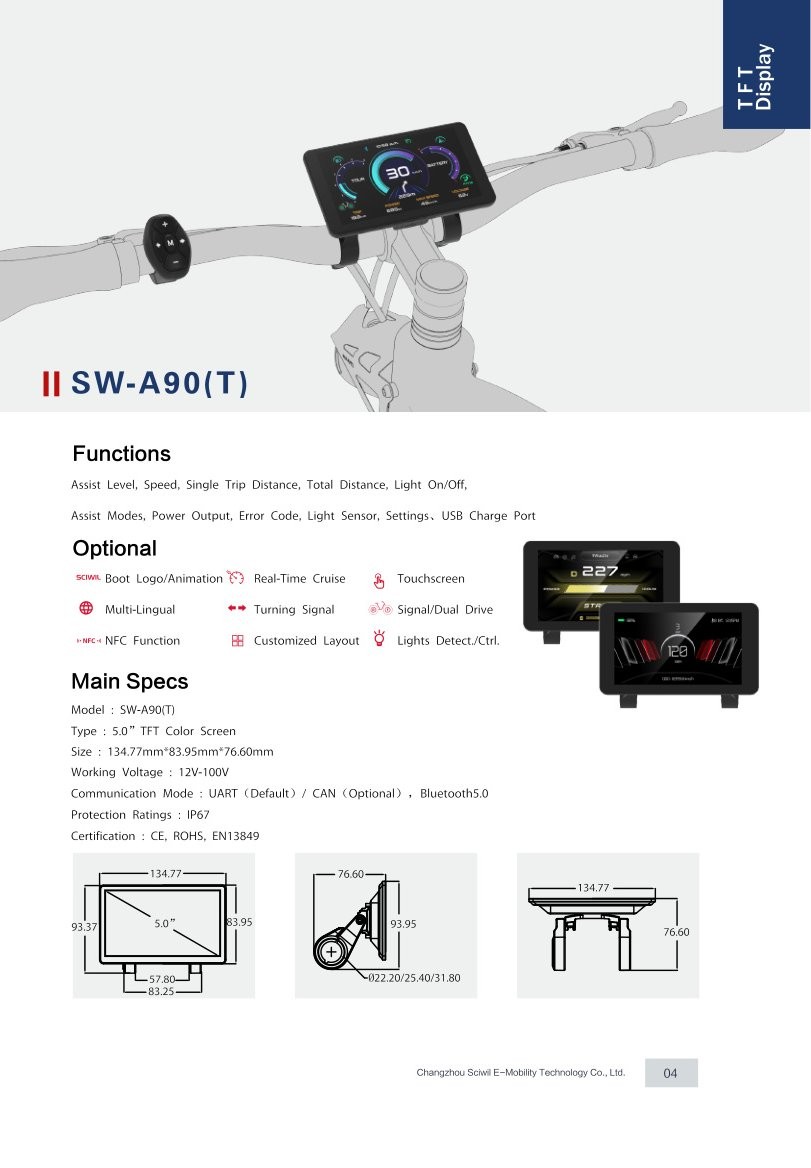

Technical Specifications
| Model | SW-A90(T) |
| Screen Type | 5.0-inch TFT color screen (optional touchscreen) |
| Working Voltage | 12–100 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP67 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 134.77 × 83.95 × 76.60 mm |
| Handlebar Compatibility | Ø22.2 / Ø25.4 / Ø31.8 mm |
| Light Sensor | Yes (automatic backlight) |
| USB Port | Yes (charging) |
| Remote Control | Separate handlebar keypad (included) |
Frequently Asked Questions
What communication protocols does the display support?
It supports UART as the default protocol and offers optional CAN communication; Bluetooth 5.0 is built in.
Is the display suitable for outdoor use?
Yes, it features an IP67 protection rating for dependable outdoor use.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
The device operates within a wide voltage range of 12 to 100 V DC.
Is a touchscreen version available?
Yes. The display offers an optional touchscreen version; the standard version uses physical controls.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
