SW-G31 TFT Display

2.4-inch slim angled TFT display with bottom mount

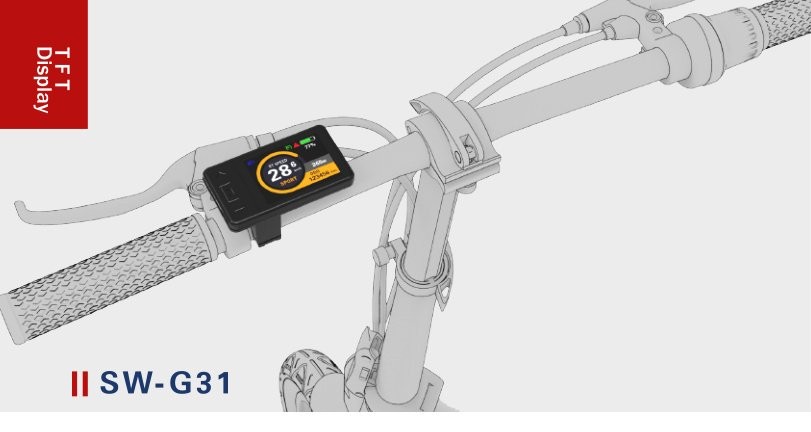

SW-G31 TFT Display installed on e-bike

Overview

The SW-G31 is a 2.4-inch slim TFT color display with an angled design and single bottom mounting foot. It supports wide voltage input and Bluetooth 5.0, offering a clean look for modern e-bikes and light EVs.

  • 2.4-inch TFT color screen
  • 12–100 V DC working voltage
  • UART (default) / CAN (optional), Bluetooth 5.0
  • IP67 protection rating
  • CE / RoHS / EN13849 certified

Features & Dimensions

Standard Functions

  • Assist level display and adjustment
  • Real-time speed
  • Single trip distance
  • Total distance (ODO)
  • Light on/off control
  • Assist modes selection
  • Power output indicator
  • Error code display
  • Ambient light sensor (auto brightness)
  • Settings menu

Optional Features

  • NFC function
  • Real-time cruise
  • Multi-language
  • Turning signal
  • Signal / dual drive
  • Dual battery
  • Customized layout
SW-G31 TFT Display

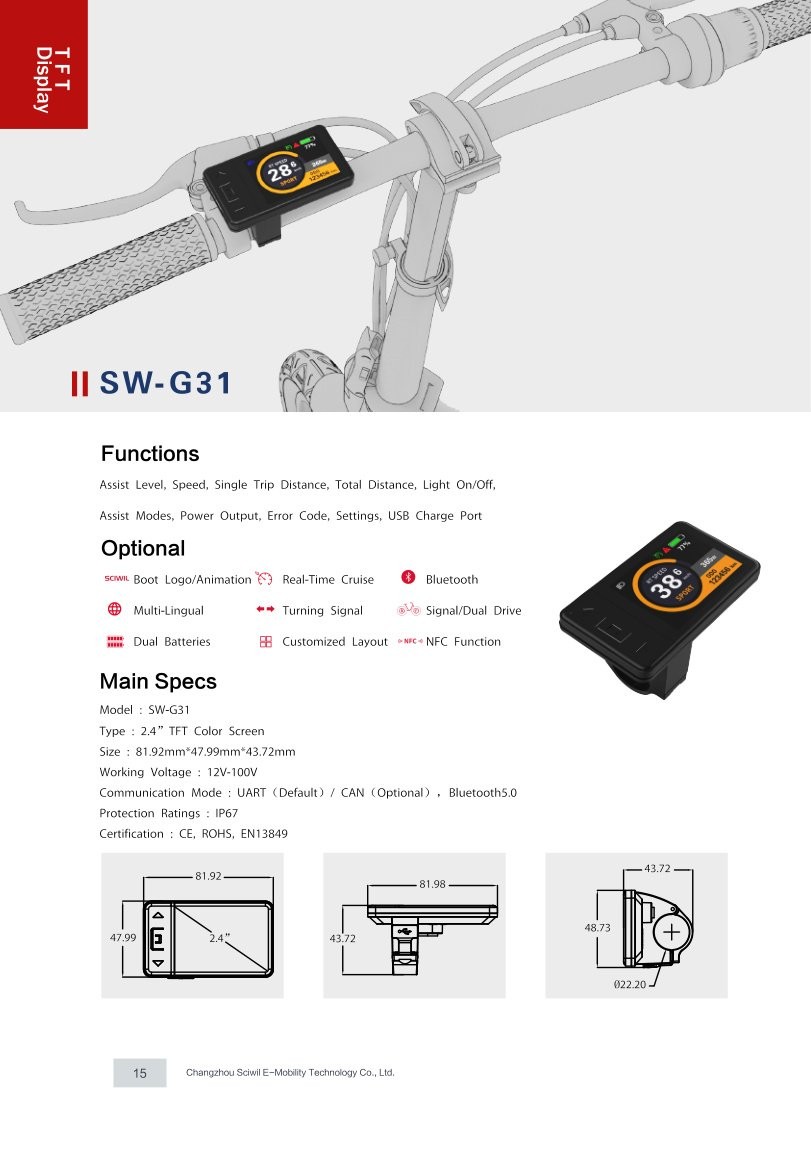

SW-G31 TFT Display dimensions

Technical Specifications

ModelSW-G31
Screen Type2.4-inch TFT color screen
Working Voltage12–100 V DC
CommunicationUART (default) / CAN (optional), Bluetooth 5.0
Protection RatingIP67
CertificationCE / RoHS / EN13849
Dimensions (W × H × D)81.92 × 47.99 × 43.72 mm
Handlebar CompatibilityBottom bracket mount
Light SensorYes (automatic backlight)
Remote ControlSeparate handlebar keypad (included)

Frequently Asked Questions

What communication protocols does the display support?

It supports UART as the default protocol and offers optional CAN communication; Bluetooth 5.0 is built in.

Is the display suitable for outdoor use?

Yes, it features an IP67 protection rating for dependable outdoor use.

Can the display be customized?

Software customization is available (such as UI and logo); the housing design is standard and not customizable.

What is the working voltage range?

The device operates within a wide voltage range of 12 to 100 V DC.

Does the display have a light sensor?

Yes. An ambient light sensor automatically adjusts the backlight for day and night riding.

What certifications does the product hold?

The product complies with CE, RoHS, EN13849 standards.
