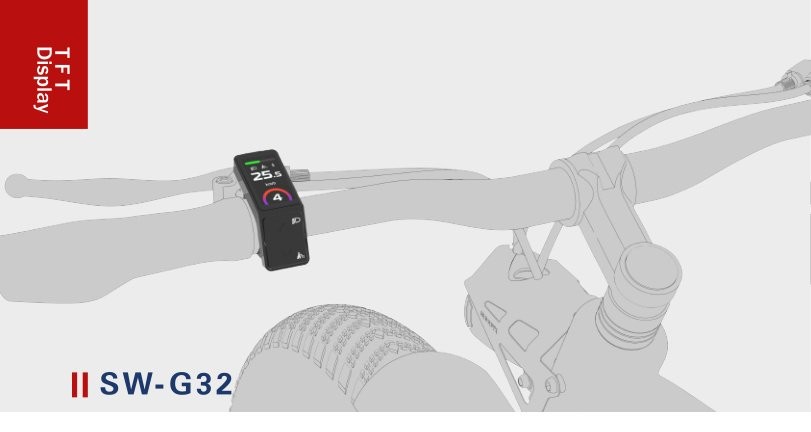

SW-G32 TFT Display
1.47-inch ultra-mini clamp-on split handlebar display
Overview
The SW-G32 is an ultra-compact 1.47-inch TFT display with a split clamp-on design that mounts directly on the handlebar. At just 10.83 mm thin, it is one of the smallest color displays available, perfect for road and gravel e-bikes.
- 1.47-inch TFT color screen
- 12–100 V DC working voltage
- UART (default) / CAN (optional)
- IP67 protection rating
- CE / RoHS / EN13849 certified
Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Settings menu
Optional Features
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- Customized layout

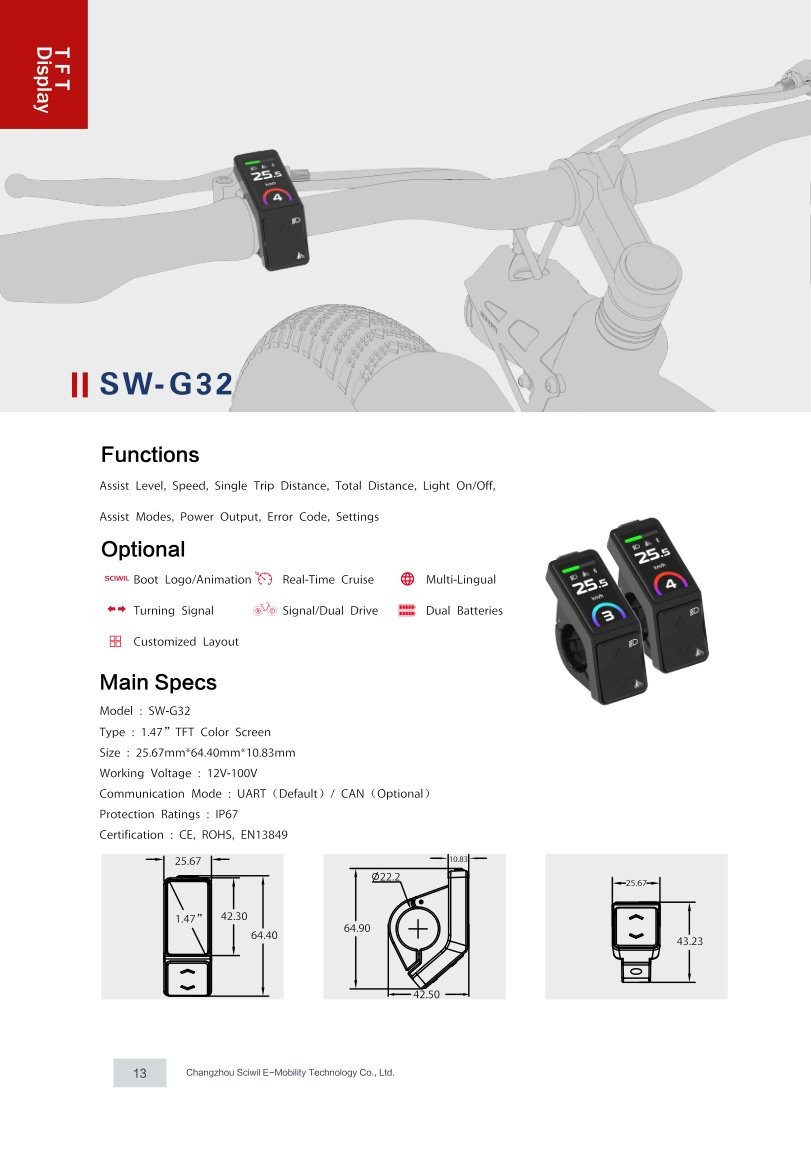

Technical Specifications
| Model | SW-G32 |
| Screen Type | 1.47-inch TFT color screen |
| Working Voltage | 12–100 V DC |
| Communication | UART (default) / CAN (optional) |
| Protection Rating | IP67 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 25.67 × 64.40 × 10.83 mm |
| Mounting | Clamp-on handlebar |
Frequently Asked Questions
What communication protocols does the display support?
It supports UART as the default protocol and offers optional CAN communication.
Is the display suitable for outdoor use?
Yes, it features an IP67 protection rating for dependable outdoor use.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
The device operates within a wide voltage range of 12 to 100 V DC.
How is the display mounted?
It uses a clamp-on split handlebar mount.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
