SW-G518 VA Display

2.3-inch compact VA display with side buttons

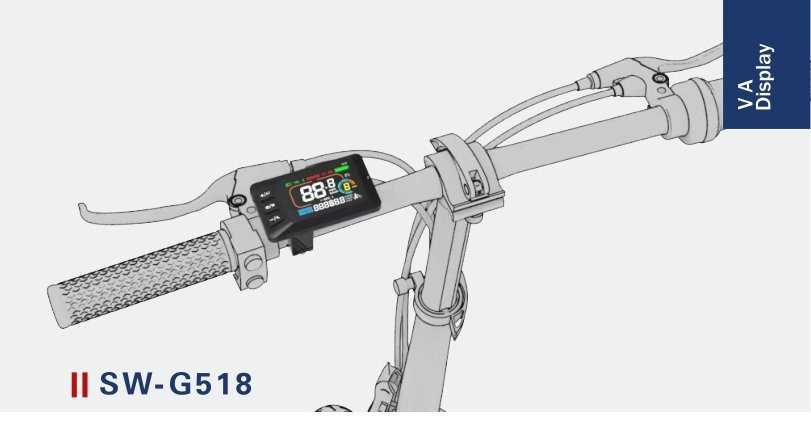

SW-G518 VA Display installed on e-bike

Overview

The SW-G518 is a compact 2.3-inch VA color display with physical control buttons on the left side. It is a cost-effective option for e-bikes that require a color display without the need for a separate remote keypad.

  • 2.3-inch VA color screen
  • 12–100 V DC working voltage
  • UART (default) / CAN (optional)
  • IP65 protection rating
  • CE / RoHS / EN13849 certified

Features & Dimensions

Standard Functions

  • Assist level display and adjustment
  • Real-time speed
  • Single trip distance
  • Total distance (ODO)
  • Light on/off control
  • Assist modes selection
  • Power output indicator
  • Error code display
  • Settings menu
  • USB charging port

Optional Features

  • Real-time cruise
  • Turning signal
  • Signal / dual drive
  • Dual battery
  • Charging status
  • Component temperature
SW-G518 VA Display

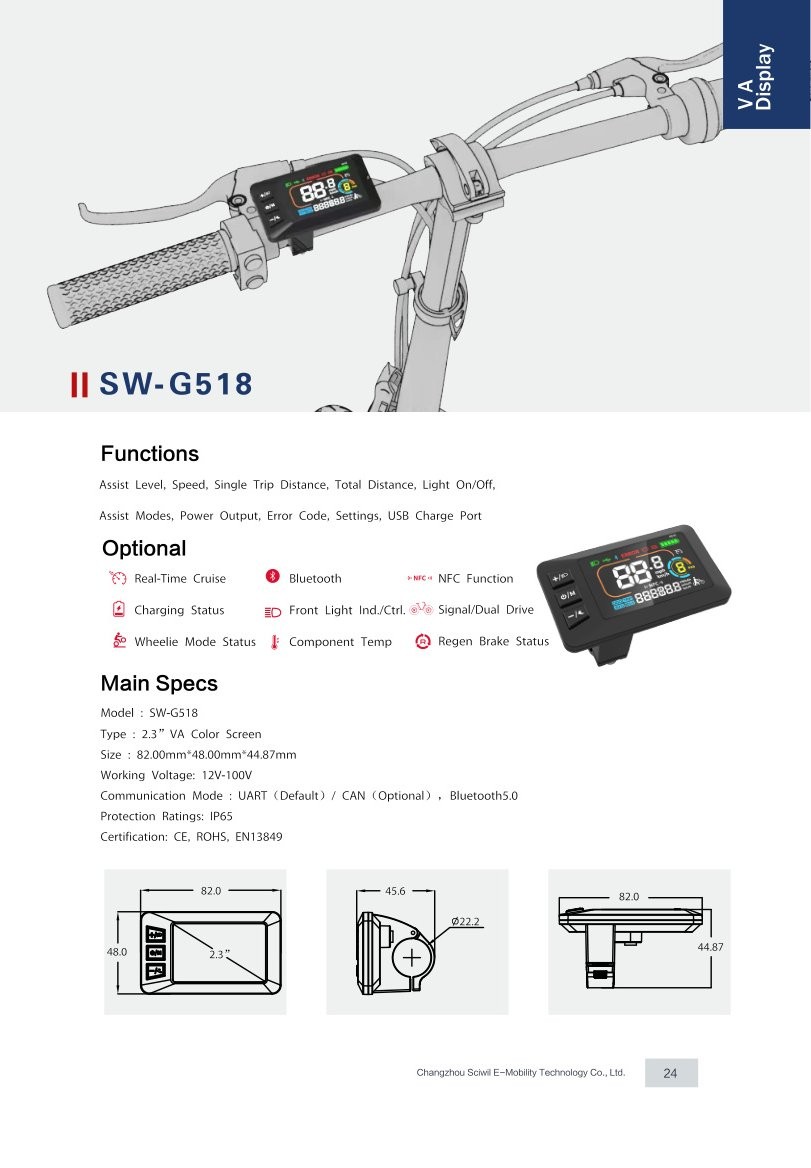

SW-G518 VA Display dimensions

Technical Specifications

ModelSW-G518
Screen Type2.3-inch VA color screen
Working Voltage12–100 V DC
CommunicationUART (default) / CAN (optional)
Protection RatingIP65
CertificationCE / RoHS / EN13849
Dimensions (W × H × D)82.00 × 48.00 × 44.87 mm
Handlebar CompatibilityØ22.2 mm
USB PortYes (charging)
ButtonsIntegrated on unit

Frequently Asked Questions

What communication protocols does the display support?

It supports UART as the default protocol and offers optional CAN communication.

Is the display suitable for outdoor use?

Yes, the IP65-rated housing protects against dust and water spray.

Can the display be customized?

Software customization is available (such as UI and logo); the housing design is standard and not customizable.

What is the working voltage range?

The device operates within a wide voltage range of 12 to 100 V DC.

Does the display have a USB charging port?

Yes. It includes a USB port for charging devices on the go.

What certifications does the product hold?

The product complies with CE, RoHS, EN13849 standards.
