SW-G519 VA Display

1.9-inch compact VA display with physical buttons

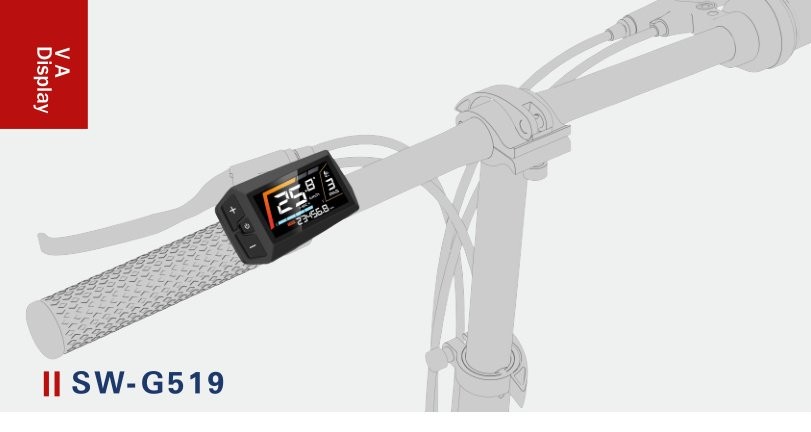

SW-G519 VA Display installed on e-bike

Overview

The SW-G519 is an ultra-thin 1.9-inch VA color display at only 11.5 mm thick, with physical +/–/power buttons on the side. It supports advanced features like wheelie mode status and component temperature, making it popular for performance eMTB applications.

  • 1.9-inch VA color screen
  • 12–100 V DC working voltage
  • UART (default) / CAN (optional), Bluetooth 5.0
  • IP67 protection rating
  • CE / RoHS / EN13849 certified

Features & Dimensions

Standard Functions

  • Assist level display and adjustment
  • Real-time speed
  • Single trip distance
  • Total distance (ODO)
  • Light on/off control
  • Assist modes selection
  • Power output indicator
  • Error code display
  • Settings menu
  • USB charging port

Optional Features

  • Real-time cruise
  • Bluetooth
  • Multi-language
  • Turning signal
  • Signal / dual drive
  • NFC function
  • Dual battery
  • Charging status
  • Regenerative brake
  • Wheelie mode
  • Component temperature
SW-G519 VA Display

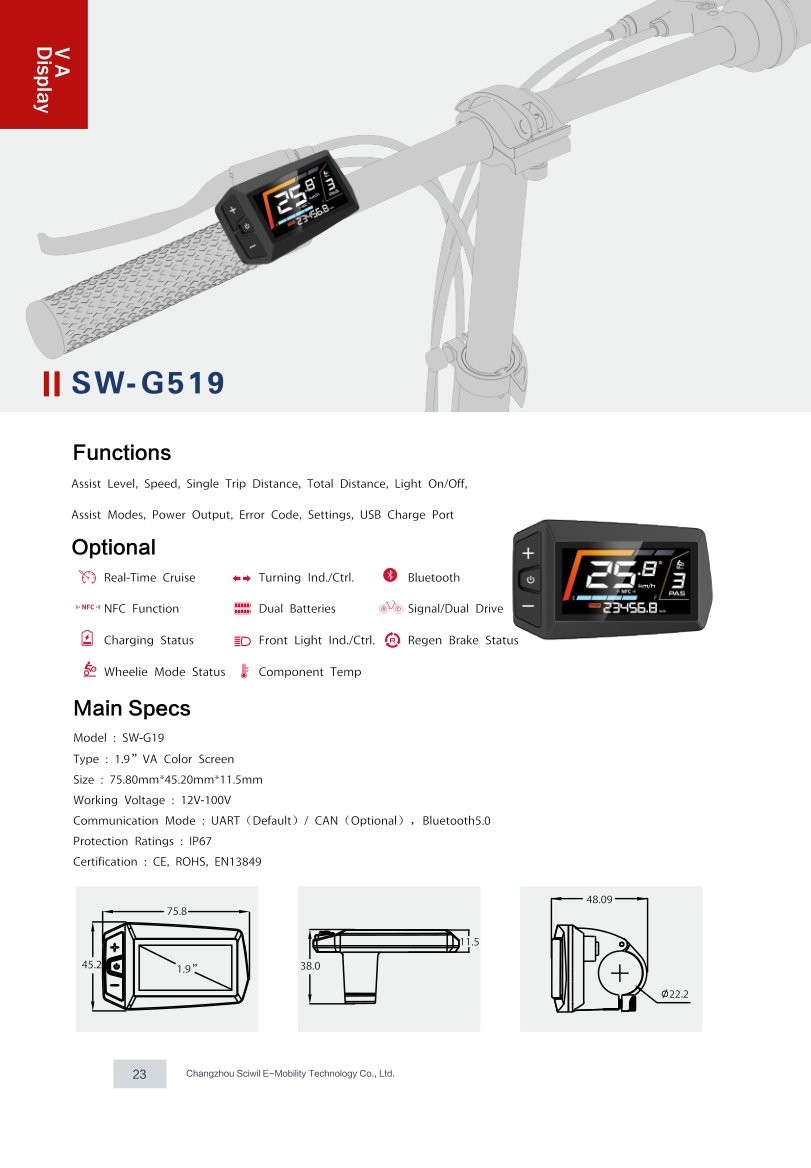

SW-G519 VA Display dimensions

Technical Specifications

ModelSW-G519
Screen Type1.9-inch VA color screen
Working Voltage12–100 V DC
CommunicationUART (default) / CAN (optional), Bluetooth 5.0
Protection RatingIP67
CertificationCE / RoHS / EN13849
Dimensions (W × H × D)75.80 × 45.20 × 11.50 mm
Handlebar CompatibilityØ22.2 mm
USB PortYes (charging)
ButtonsIntegrated on unit

Frequently Asked Questions

What communication protocols does the display support?

It supports UART as the default protocol and offers optional CAN communication; Bluetooth 5.0 is built in.

Is the display suitable for outdoor use?

Yes, it features an IP67 protection rating for dependable outdoor use.

Can the display be customized?

Software customization is available (such as UI and logo); the housing design is standard and not customizable.

What is the working voltage range?

The device operates within a wide voltage range of 12 to 100 V DC.

Does the display have a USB charging port?

Yes. It includes a USB port for charging devices on the go.

What certifications does the product hold?

The product complies with CE, RoHS, EN13849 standards.
