SW-K58 TFT Display
4.58-inch wide TFT display with dual-bracket mount
Overview
The SW-K58 is a wide 4.58-inch TFT color display with a dual-bracket mounting system for secure installation on electric motorcycles and fat-tire e-bikes. Its large screen provides ample space for speed, battery, assist level, and navigation data.
- 4.58-inch TFT color screen
- 12–100 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP67 protection rating
- CE / RoHS / EN13849 certified

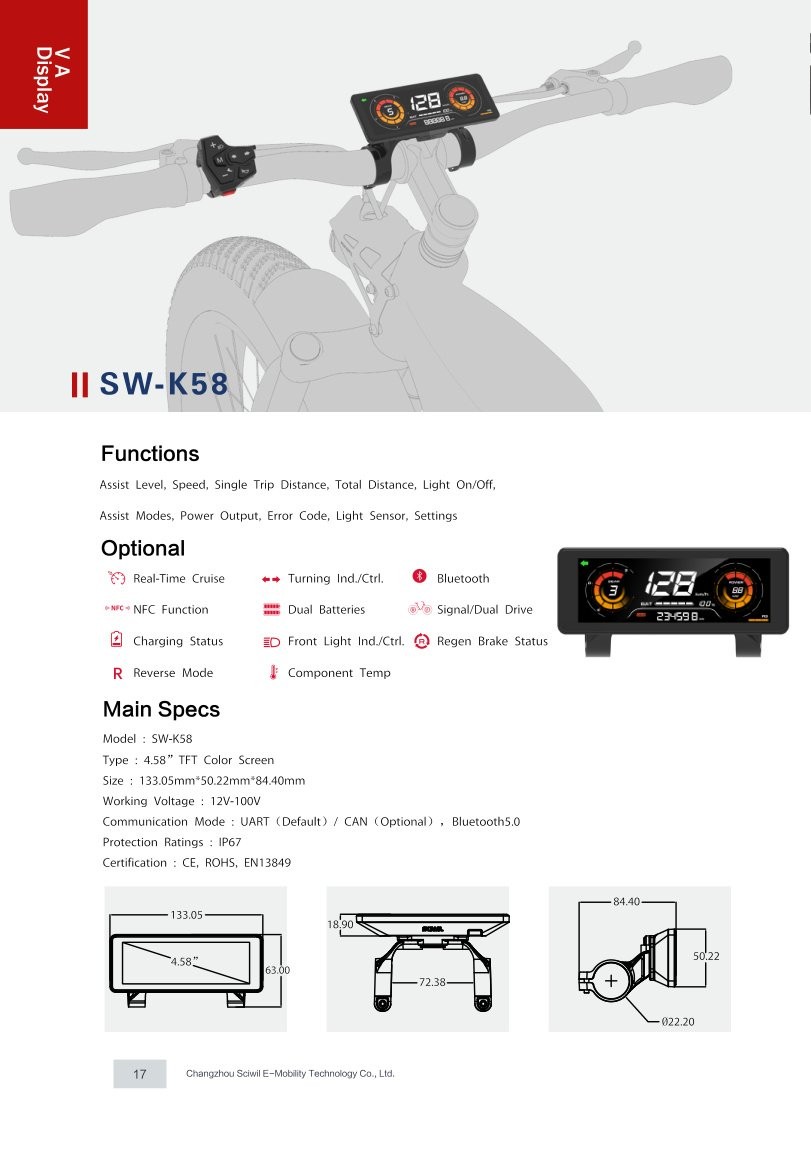

Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
- USB charging port
Optional Features
- NFC function
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- Dual battery
- Customized layout
Technical Specifications
| Model | SW-K58 |
| Screen Type | 4.58-inch TFT color screen |
| Working Voltage | 12–100 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP67 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 133.05 × 50.22 × 84.40 mm |
| Handlebar Compatibility | Dual-bracket mount |
| Light Sensor | Yes (automatic backlight) |
| USB Port | Yes (charging) |
| Remote Control | Separate handlebar keypad (included) |
Frequently Asked Questions
What communication protocols does the display support?
It supports UART as the default protocol and offers optional CAN communication; Bluetooth 5.0 is built in.
Is the display suitable for outdoor use?
Yes, it features an IP67 protection rating for dependable outdoor use.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
The device operates within a wide voltage range of 12 to 100 V DC.
Does the display have a USB charging port?
Yes. It includes a USB port for charging devices on the go.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
