SW-K59 TFT Display
3.8-inch slim elongated TFT display for integrated mounting
Overview

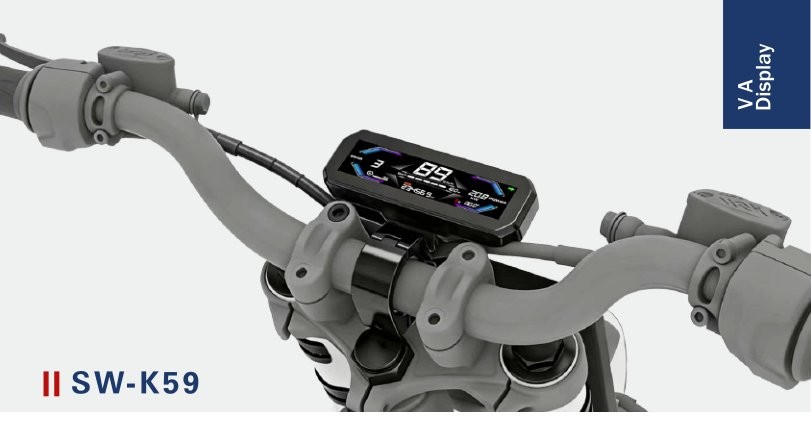

The SW-K59 is a slim 3.8-inch elongated TFT display at only 16.80 mm thick, designed for integrated mounting on modern e-bikes and electric scooters. Its chamfered edges and low profile deliver a clean, factory-installed appearance.
- 3.8-inch TFT color screen
- 12–100 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP67 protection rating
- CE / RoHS / EN13849 certified
Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
Optional Features
- NFC function
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- Dual battery
- Customized layout

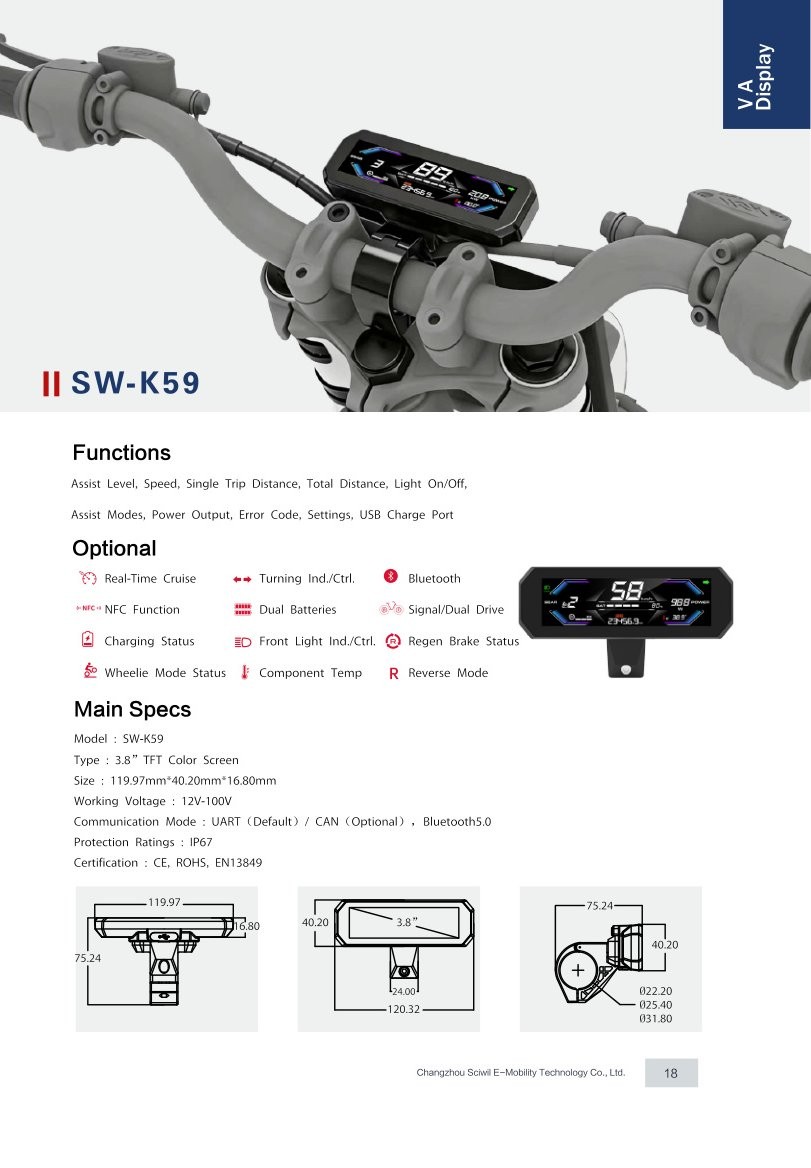

Technical Specifications
| Model | SW-K59 |
| Screen Type | 3.8-inch TFT color screen |
| Working Voltage | 12–100 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP67 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 119.97 × 40.20 × 16.80 mm |
| Light Sensor | Yes (automatic backlight) |
| Remote Control | Separate handlebar keypad (included) |
Frequently Asked Questions
What communication protocols does the display support?
It supports UART as the default protocol and offers optional CAN communication; Bluetooth 5.0 is built in.
Is the display suitable for outdoor use?
Yes, it features an IP67 protection rating for dependable outdoor use.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
The device operates within a wide voltage range of 12 to 100 V DC.
Does the display have a light sensor?
Yes. An ambient light sensor automatically adjusts the backlight for day and night riding.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
