SW-K80 TFT Display
3.9-inch angular TFT display with integrated turn signals and NFC
Overview
The SW-K80 is a 3.9-inch horizontal TFT color display with an angular, rugged design and integrated turn signal indicators on both sides. It supports NFC unlocking, wide 12–100V input, and IP67 protection, making it ideal for electric motorcycles and fat-tire e-bikes.
- 3.9-inch TFT color screen
- 12–100 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP67 protection rating
- CE / RoHS / EN13849 certified

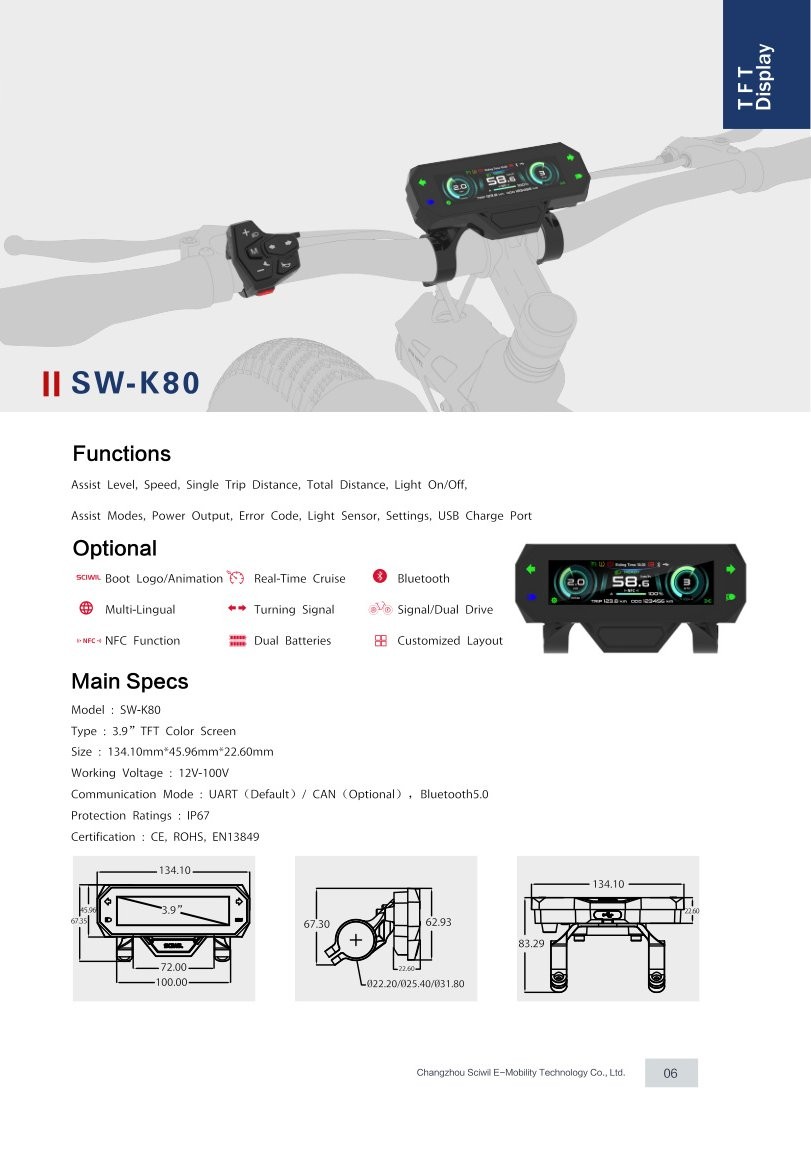

Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
- USB charging port
Optional Features
- NFC function
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- Dual battery
- Customized layout
Technical Specifications
| Model | SW-K80 |
| Screen Type | 3.9-inch TFT color screen |
| Working Voltage | 12–100 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP67 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 134.10 × 45.96 × 22.60 mm |
| Handlebar Compatibility | Ø22.2 / Ø25.4 / Ø31.8 mm |
| Light Sensor | Yes (automatic backlight) |
| USB Port | Yes (charging) |
| Remote Control | Separate handlebar keypad (included) |
