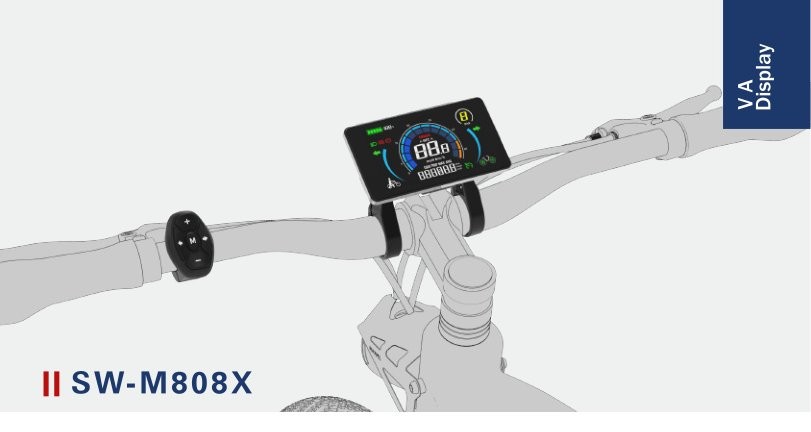

SW-M808X VA Display
4.0-inch VA color display with advanced vehicle features
Overview
The SW-M808X is a 4.0-inch VA color display with advanced vehicle features including charging status, regenerative brake indicator, reverse mode, and component temperature display. It is designed for electric motorcycles and high-end e-bikes that require comprehensive vehicle information at a glance.
- 4.0-inch VA color screen
- 12–100 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP66 protection rating
- CE / RoHS / EN13849 certified

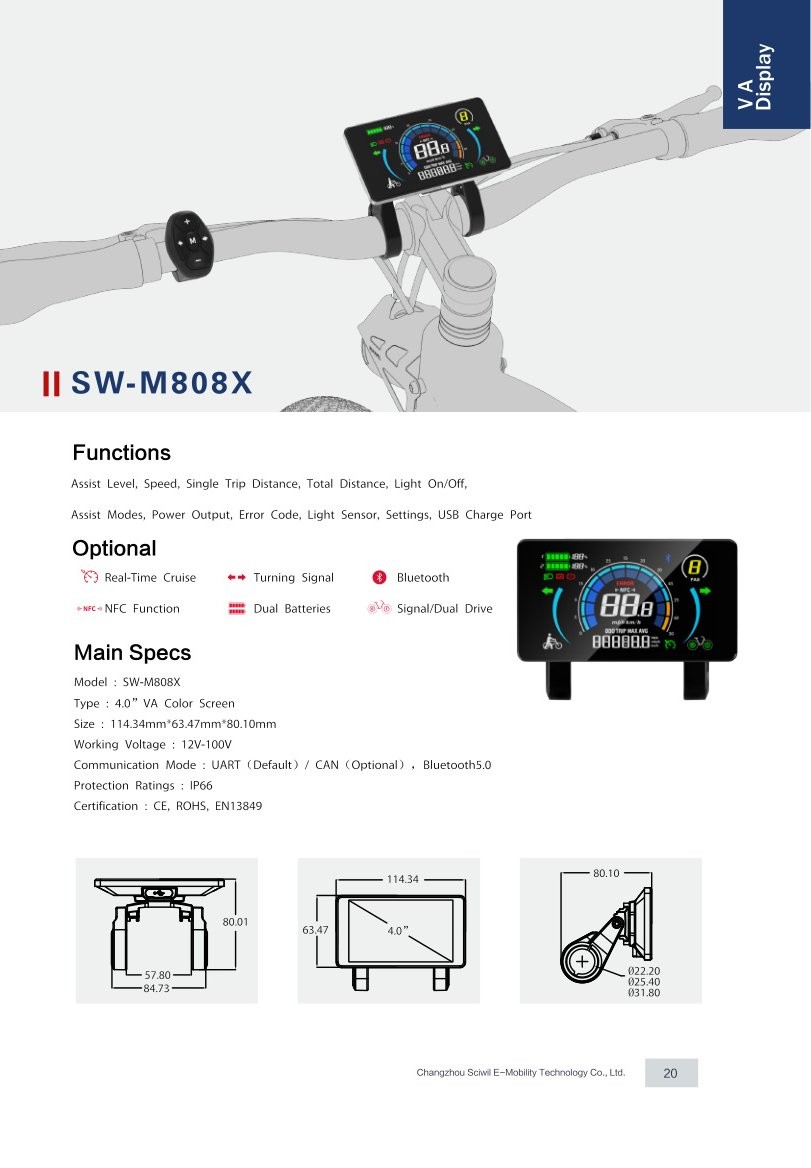

Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
- USB charging port
Optional Features
- NFC function
- Real-time cruise
- Bluetooth
- Multi-language
- Turning signal
- Signal / dual drive
- Dual battery
- Charging status
- Front light indicator
- Regenerative brake
- Reverse mode
- Component temperature
Technical Specifications
| Model | SW-M808X |
| Screen Type | 4.0-inch VA color screen |
| Working Voltage | 12–100 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP66 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 114.34 × 63.47 × 80.10 mm |
| Handlebar Compatibility | Ø22.2 / Ø25.4 / Ø31.8 mm |
| Light Sensor | Yes (automatic backlight) |
| USB Port | Yes (charging) |
| Remote Control | Separate handlebar keypad (included) |
