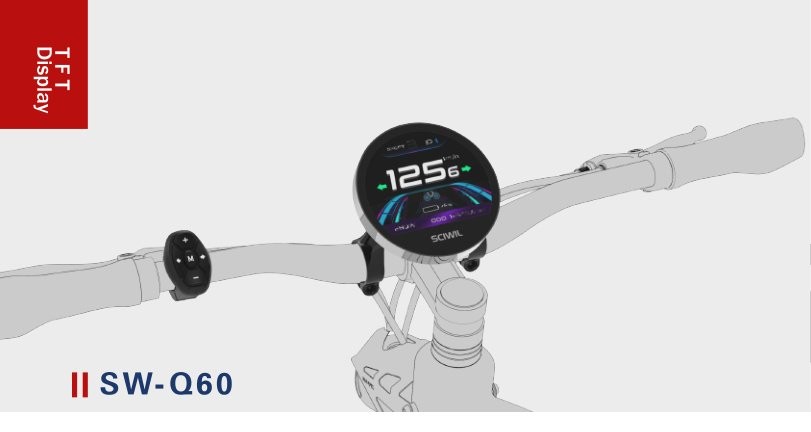

SW-Q60 TFT Display
3.6-inch round TFT display for a classic dashboard look
Overview
The SW-Q60 is a distinctive round 3.6-inch TFT color display that brings a classic dashboard aesthetic to modern e-bikes. Its circular form factor and customizable UI make it ideal for retro-style and city electric bicycles.
- 3.5 / 3.6-inch round TFT color screen
- 12–60 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP66 protection rating
- CE / RoHS / EN13849 certified
Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
Optional Features
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- NFC function
- Dual battery
- Customized layout

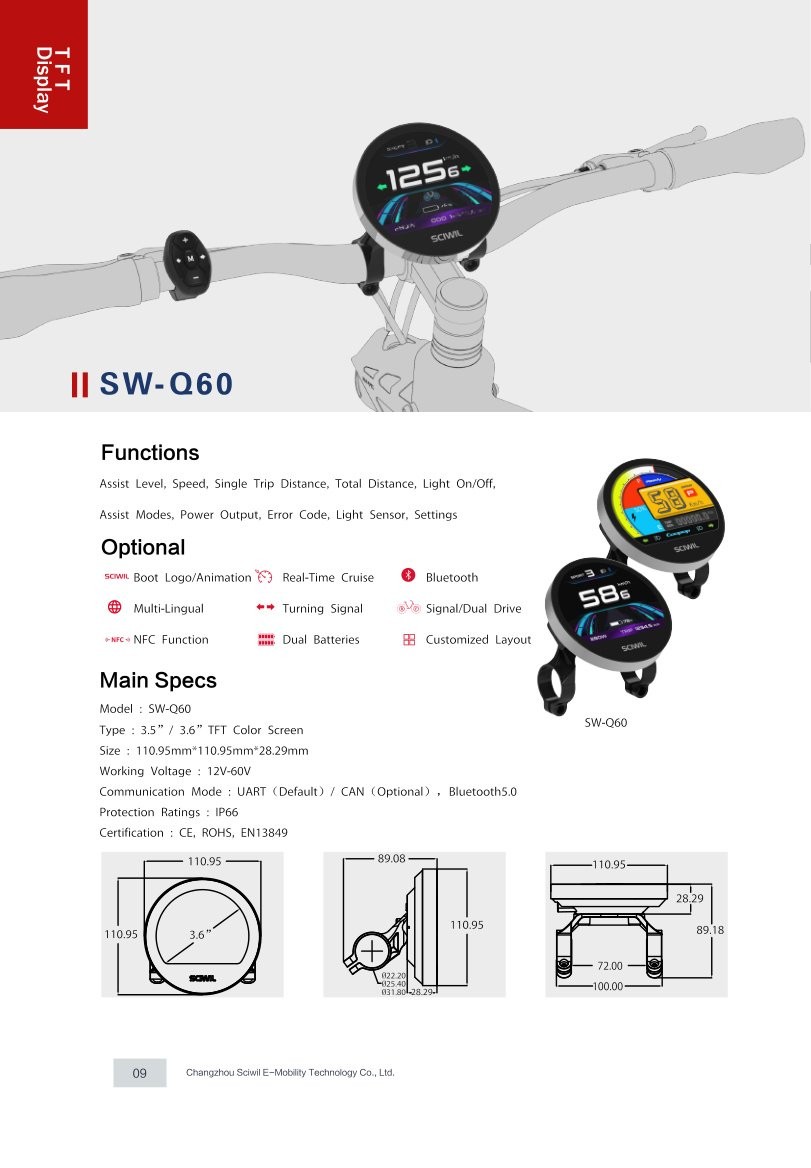

Technical Specifications
| Model | SW-Q60 |
| Screen Type | 3.5 / 3.6-inch round TFT color screen |
| Working Voltage | 12–60 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP66 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 110.95 × 110.95 × 28.29 mm |
| Handlebar Compatibility | Ø22.2 / Ø25.4 / Ø31.8 mm |
| Light Sensor | Yes (automatic backlight) |
| Remote Control | Separate handlebar keypad (included) |
Frequently Asked Questions
What communication protocols does the display support?
It supports UART as the default protocol and offers optional CAN communication; Bluetooth 5.0 is built in.
Is the display suitable for outdoor use?
Yes, it features an IP66 protection rating for dependable outdoor use.
Can the display be customized?
Software customization is available (such as UI and logo); the housing design is standard and not customizable.
What is the working voltage range?
The device operates within a wide voltage range of 12 to 60 V DC.
Does the display have a light sensor?
Yes. An ambient light sensor automatically adjusts the backlight for day and night riding.
What certifications does the product hold?
The product complies with CE, RoHS, EN13849 standards.
