SW-R20 TFT Display
2.0-inch ultra-slim stem/bar-end TFT display
Overview

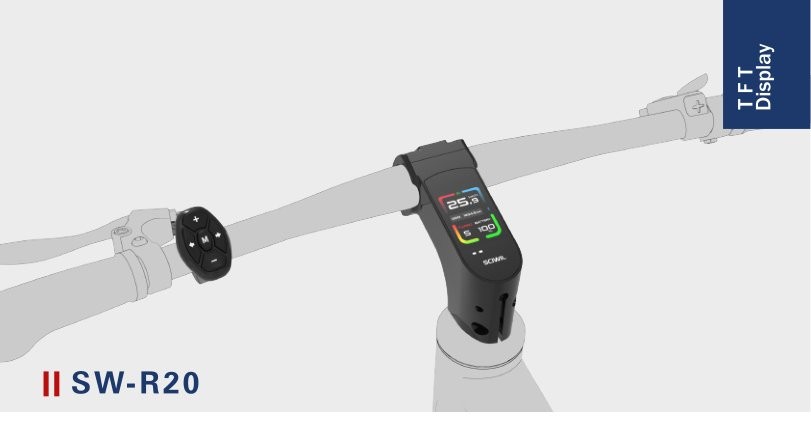

The SW-R20 is an ultra-slim 2.0-inch TFT display designed for stem or bar-end mounting, keeping the handlebar clean and uncluttered. Its compact form factor is ideal for road, gravel, and folding e-bikes where minimalism is key.
- 2.0-inch TFT color screen
- 12–60 V DC working voltage
- UART (default) / CAN (optional), Bluetooth 5.0
- IP66 protection rating
- CE / RoHS / EN13849 certified
Features & Dimensions
Standard Functions
- Assist level display and adjustment
- Real-time speed
- Single trip distance
- Total distance (ODO)
- Light on/off control
- Assist modes selection
- Power output indicator
- Error code display
- Ambient light sensor (auto brightness)
- Settings menu
Optional Features
- Real-time cruise
- Multi-language
- Turning signal
- Signal / dual drive
- Dual battery
- Customized layout

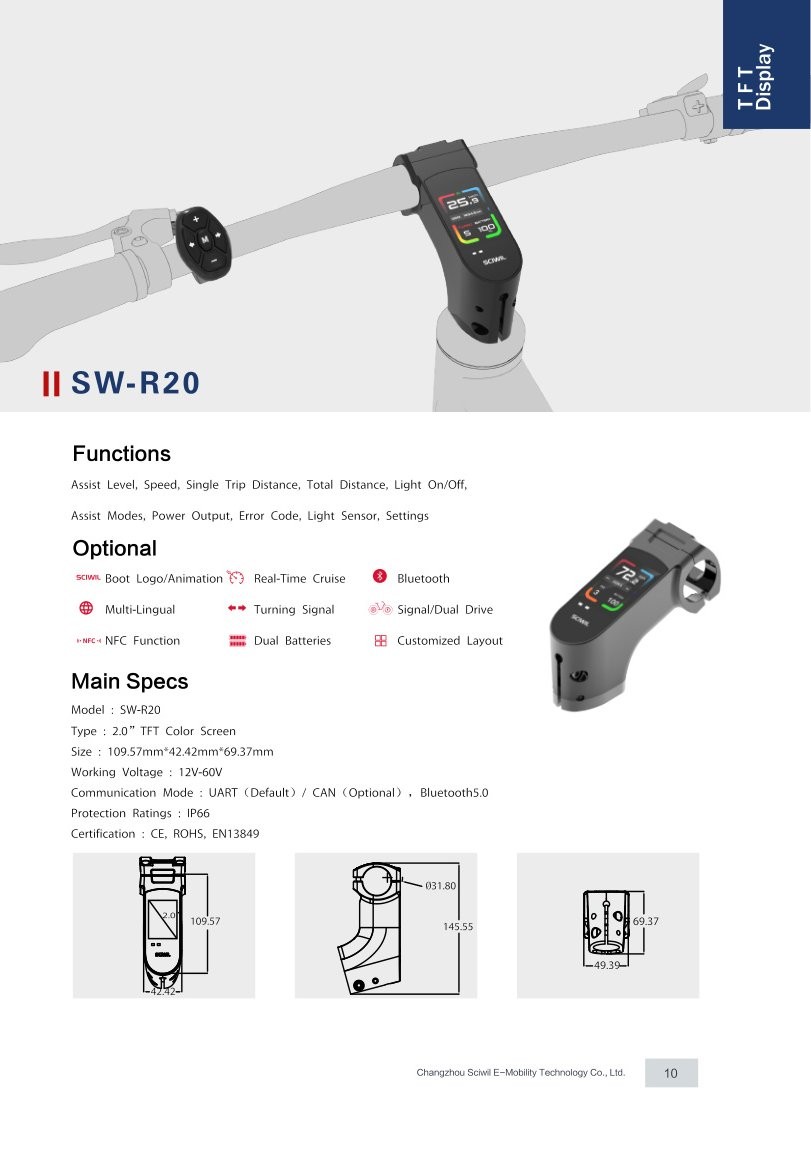

Technical Specifications
| Model | SW-R20 |
| Screen Type | 2.0-inch TFT color screen |
| Working Voltage | 12–60 V DC |
| Communication | UART (default) / CAN (optional), Bluetooth 5.0 |
| Protection Rating | IP66 |
| Certification | CE / RoHS / EN13849 |
| Dimensions (W × H × D) | 109.57 × 42.42 × 69.37 mm |
| Handlebar Compatibility | Ø31.8 mm (stem mount) |
| Light Sensor | Yes (automatic backlight) |
