SW-T10 TFT Display

1.47-inch mini TFT display with physical M button

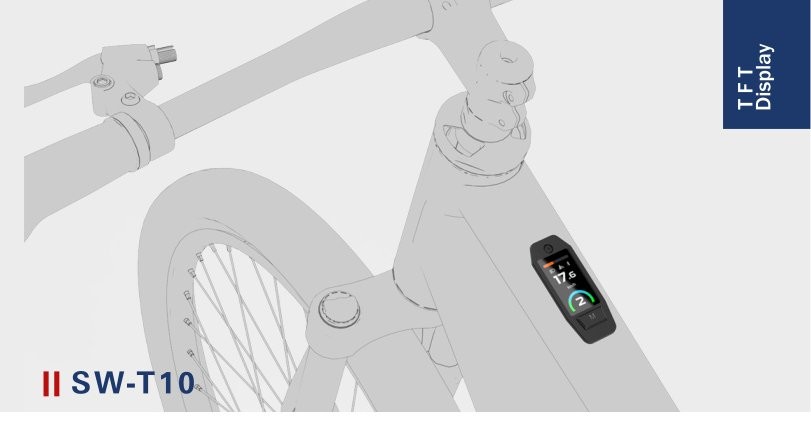

SW-T10 TFT Display installed on e-bike

Overview

The SW-T10 is a tiny 1.47-inch TFT display with a physical M button, designed for minimalist e-bike builds. Its ultra-compact size and IP67 rating make it ideal for road, gravel, and performance e-bikes where display real estate is intentionally limited.

  • 1.47-inch TFT color screen
  • 12–100 V DC working voltage
  • UART (default) / CAN (optional)
  • IP67 protection rating
  • CE / RoHS / EN13849 certified

Features & Dimensions

Standard Functions

  • Assist level display and adjustment
  • Real-time speed
  • Single trip distance
  • Total distance (ODO)
  • Light on/off control
  • Assist modes selection
  • Power output indicator
  • Error code display
  • Settings menu

Optional Features

  • Real-time cruise
  • Multi-language
  • Turning signal
  • Signal / dual drive
  • Dual battery
  • Customized layout

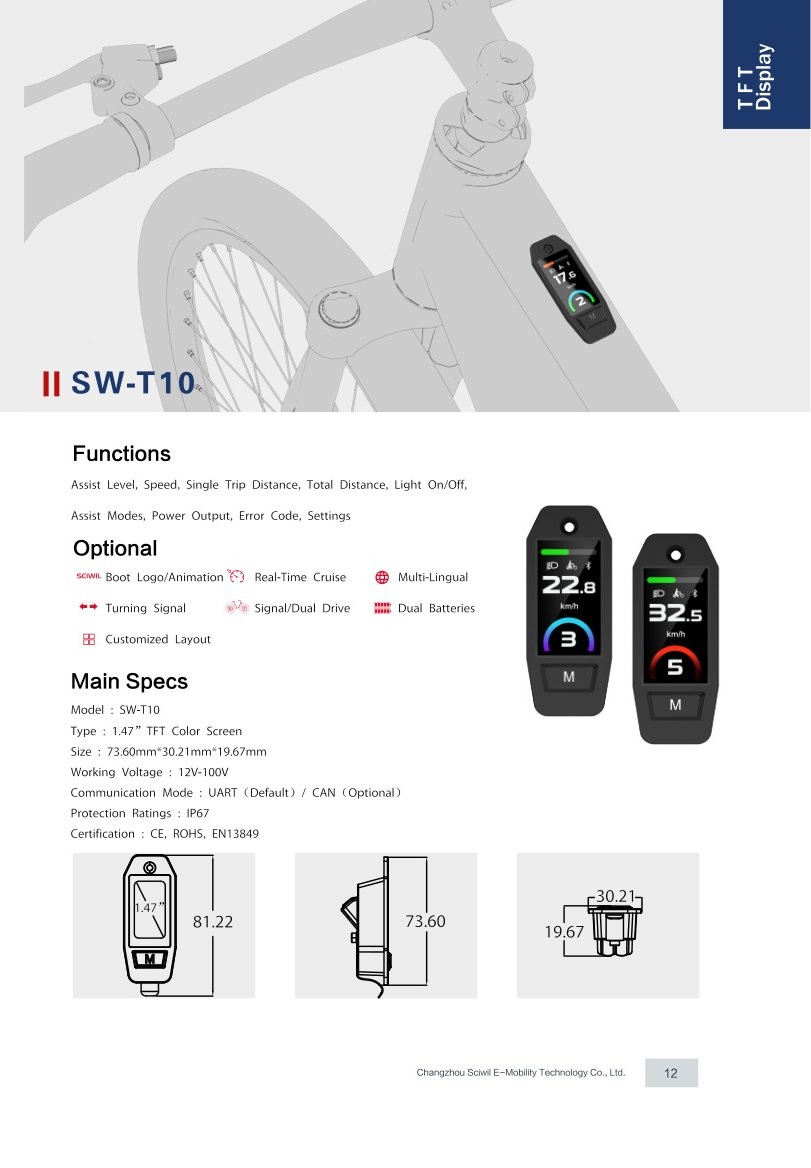

SW-T10 TFT Display specifications and dimension drawing

Technical Specifications

ModelSW-T10
Screen Type1.47-inch TFT color screen
Working Voltage12–100 V DC
CommunicationUART (default) / CAN (optional)
Protection RatingIP67
CertificationCE / RoHS / EN13849
Dimensions (W × H × D)73.60 × 30.21 × 19.67 mm
MountingHandlebar mount
ButtonsIntegrated on unit
