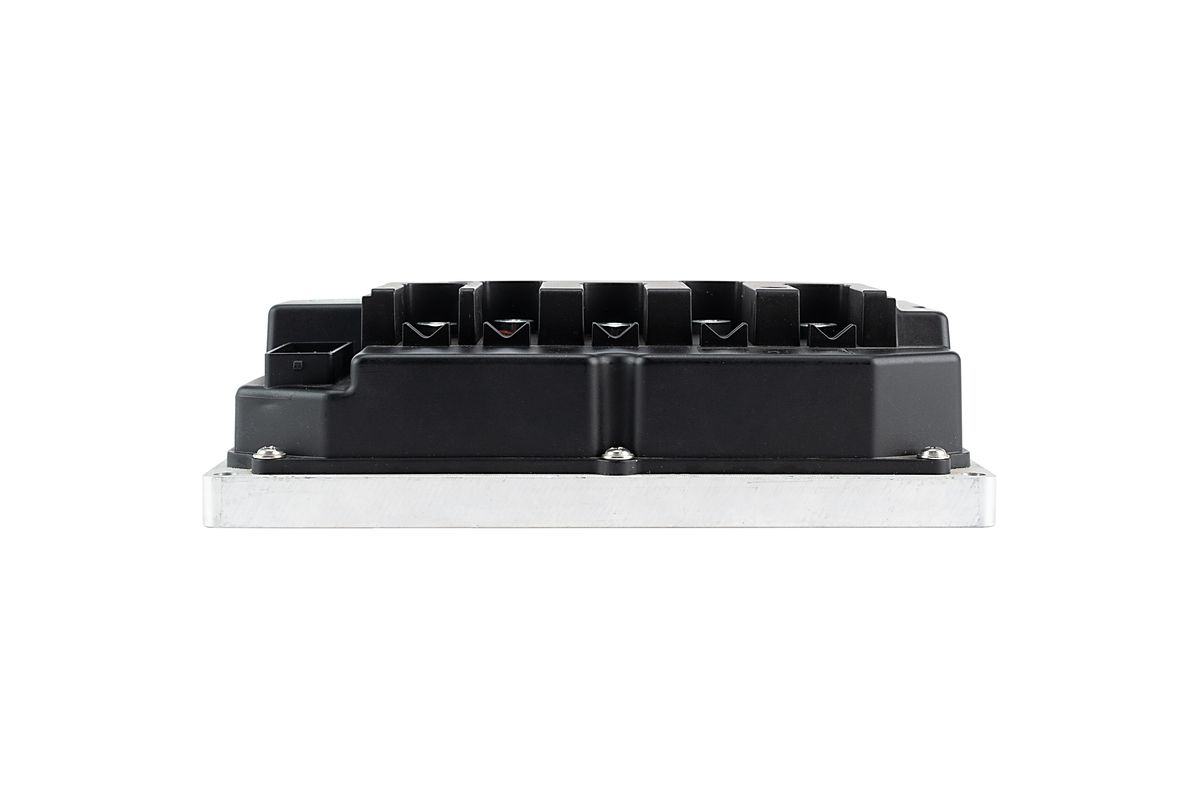

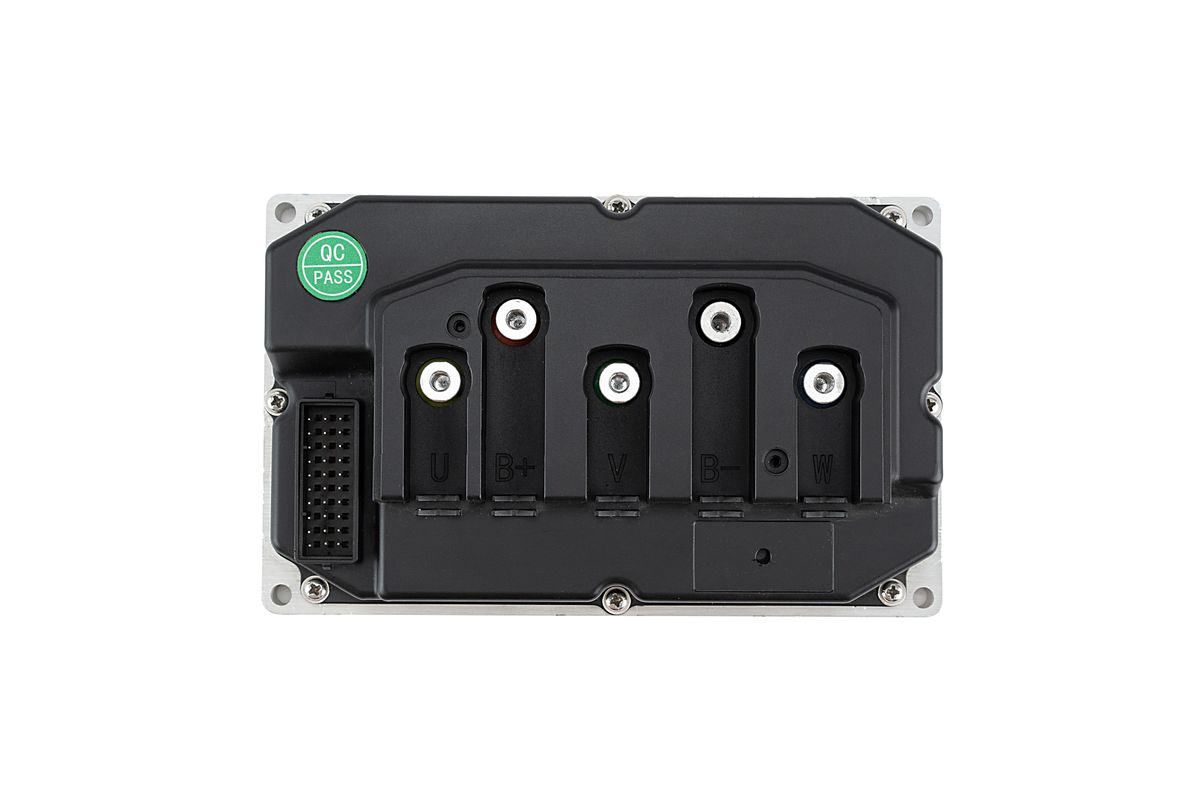

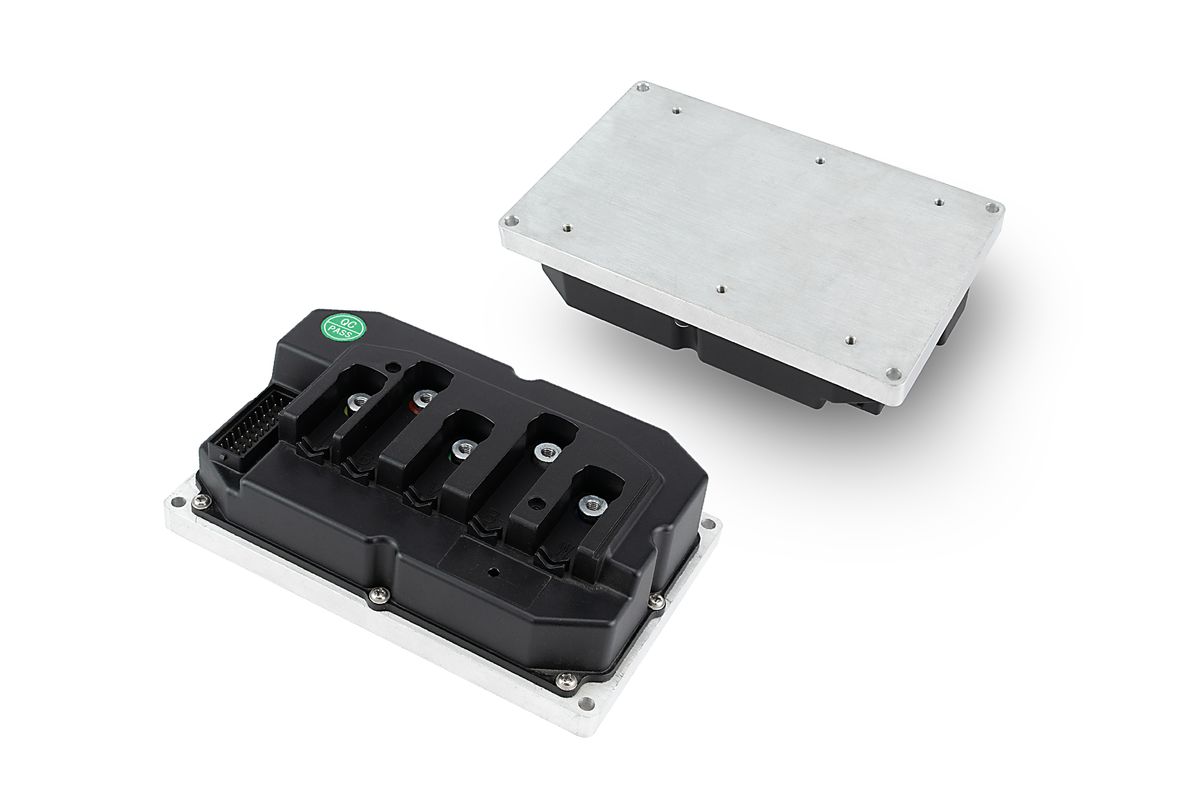

G36 Series Motor Controller
Non-isolated FOC controller for high-power applications
Overview
The G36 Series is a non-isolated sinusoidal motor controller built on our proprietary FOC algorithm for high-power electric vehicles. It delivers up to 98% efficiency with smooth torque control for PMSM, SynRM and induction motors, in an IP66-rated housing.
- FOC / MTPA / SVPWM / Flux Weakening
- Input voltage 25~88 V
- Efficiency up to 98%
- Internal IP66 protection rating
- Non-Isolated Type
- CAN2.0 communication
Technical Specifications
| Rated Input Voltage (DC-V) | 72 |
| Rated Input Current (DC-A) | 85 |
| Rated Output Current (Arms@30min) | 95 |
| Input Voltage Range (DC-V) | 25~88 |
| Maximum Input Current (DC-A, 30s) | 150 |
| Maximum Output Current (Apk@30s) | 510 |
| Peak Power (kW) | 11 |
| Operating Ambient Temperature (℃) | -20~+65 |
| Motor Type | PMSM / SynRM / Induction Motor |
| Motor Control Method | FOC/MTPA/SVPWM/Flux Weakening |
| Motor Sensor Type | SinCos / ABZ(+PWM) / HALL ABC (select one of three) |
| Efficiency | 98% |
| Protection | OverCurrent / OverVoltage / OverTemperature / Stall |
| Dimensions (mm) | 211×132×65 (excluding outer teeth dimensions) |
| Weight (kg) | <2.5 |
| Communication | CAN2.0 |
| Cooling Method | Forced Air Cooling |
| Protection Rating | Internal IP66 |
Frequently Asked Questions
What is the peak power and output current?
It delivers 11kW peak power with 510 Apk peak output (30s) and 95 Arms rated output (30min).
What is the input voltage range supported?
It supports a wide input voltage range from 25V to 88V DC, with 72V rated input voltage.
What is the maximum efficiency?
The controller achieves an efficiency of up to 98% using advanced FOC algorithms.
Is the controller suitable for outdoor use?
Yes, it features an IP66 protection rating (internal), making it suitable for harsh outdoor environments.
Which motor sensors and communication are supported?
It supports Sincos, ABZ (+PWM) or HALL ABC motor sensors (select one) with CAN 2.0 communication.
Can the software be customized?
Yes, the software can be customized to meet the different requirements of individual customers.
