ZD044 Mid-Drive Motor

Mid-Drive Motors

ZD044 Mid-Drive Motor

ZD044 Mid-Drive Motor

Model ZD044 is a mid-drive motor supplied by a trusted manufacturing partner. Rated power 350-500W, rated speed 1600rpm. See the dimension drawing and full parameter table below.

  • Model: ZD044
  • Rated Power: 350-500W
  • Rated Speed: 1600rpm
  • Full parameters & dimensions shown below

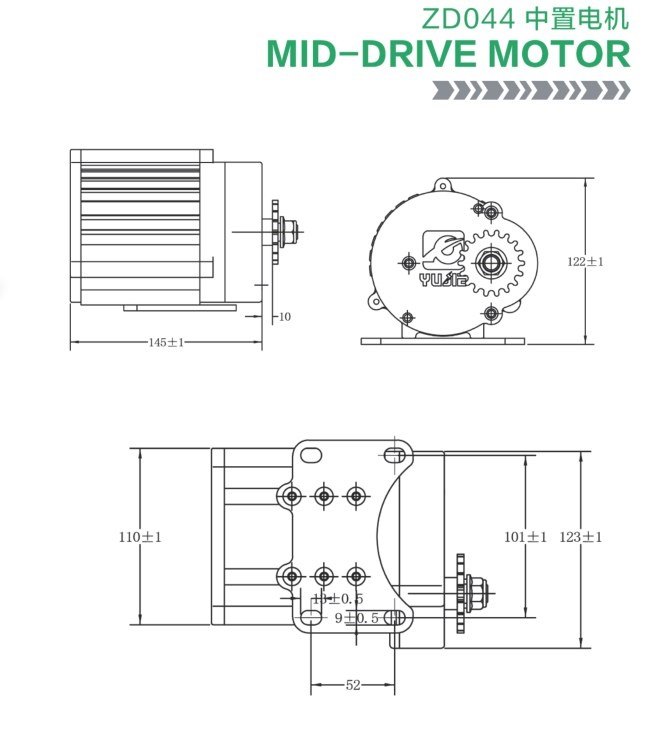

Dimensions / 尺寸图

ZD044 Mid-Drive Motor dimensions

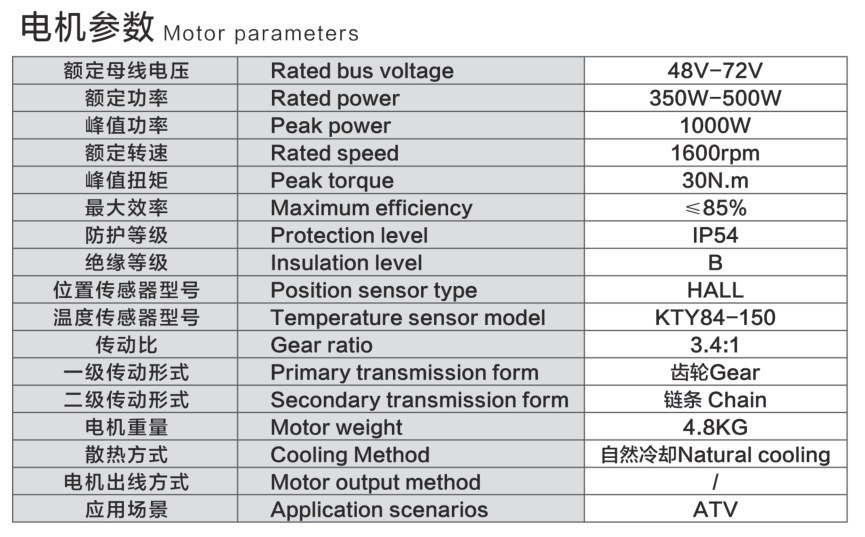

Technical Specifications / 参数表

ZD044 Mid-Drive Motor parameters

Interested in this motor?

Contact us for pricing, samples and customization.
