ZD014C Tricycle Motor

ZD014C Tricycle Motor

Model ZD014C is a tricycle motor supplied by a trusted manufacturing partner. Rated power 1000-1800W, rated speed 3800rpm. See the dimension drawing and full parameter table below.

  • Model: ZD014C
  • Rated Power: 1000-1800W
  • Rated Speed: 3800rpm
  • Full parameters & dimensions shown below

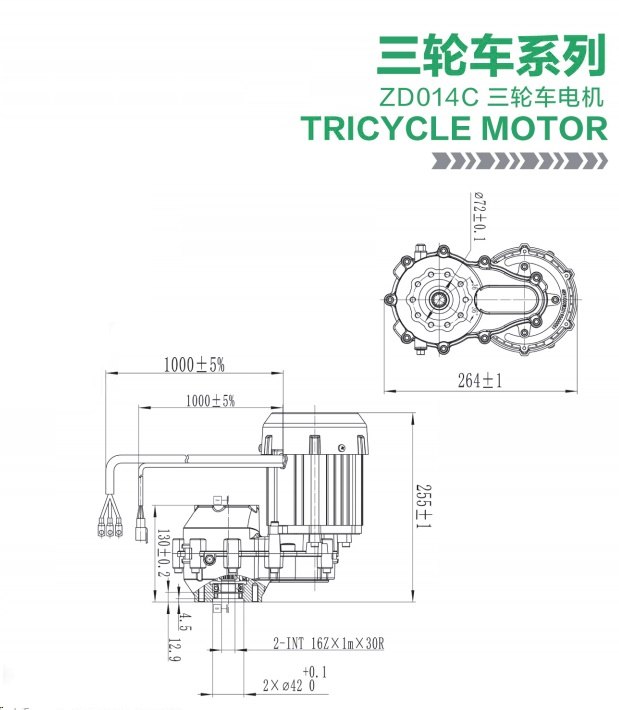

Dimensions / 尺寸图

ZD014C Tricycle Motor dimensions

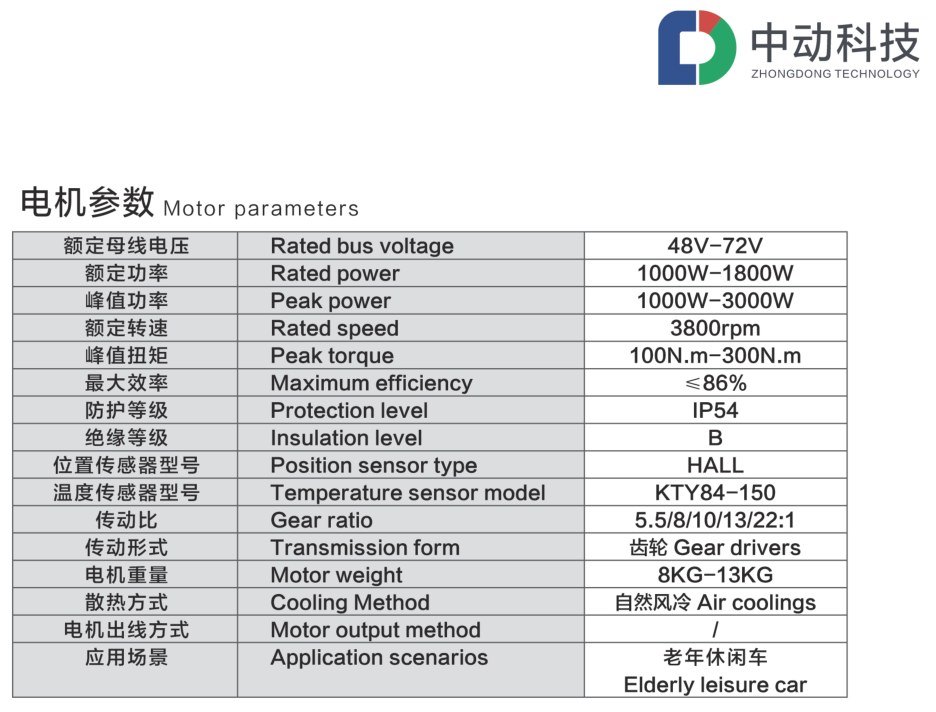

Technical Specifications / 参数表

ZD014C Tricycle Motor parameters
