110 Drive Assembly

Wheel-Side Drive Motors

110 Drive Assembly

110 Drive Assembly

Model 110 is a drive assembly supplied by a trusted manufacturing partner. Rated power 1200W, rated speed 3500rpm. See the dimension drawing and full parameter table below.

  • Model: 110
  • Rated Power: 1200W
  • Rated Speed: 3500rpm
  • Full parameters & dimensions shown below

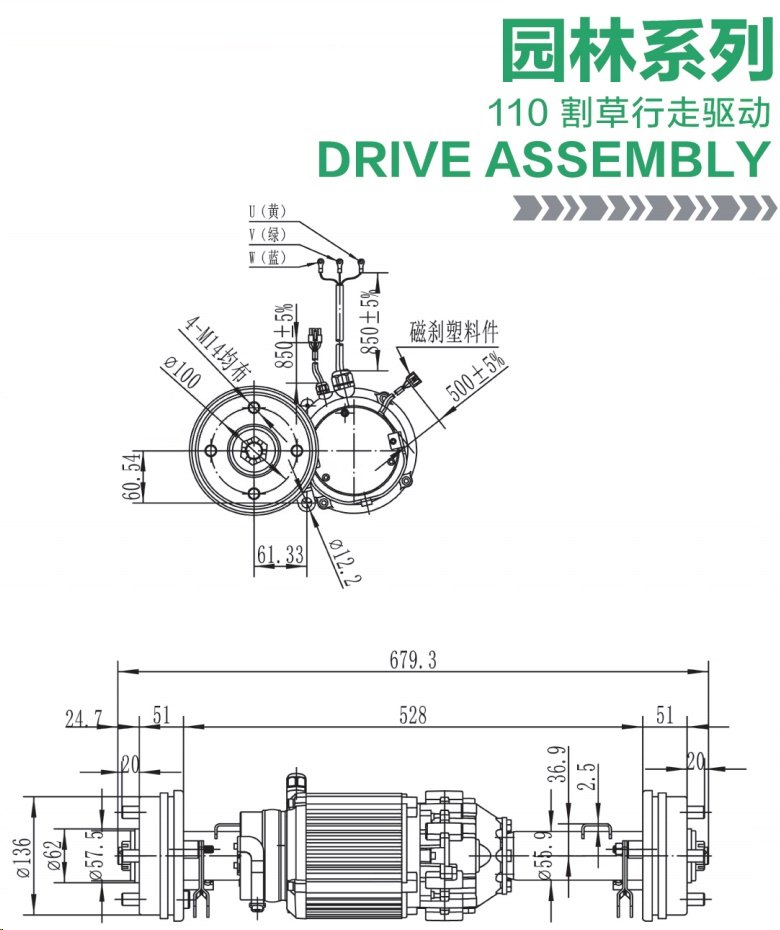

Dimensions / 尺寸图

110 Drive Assembly dimensions

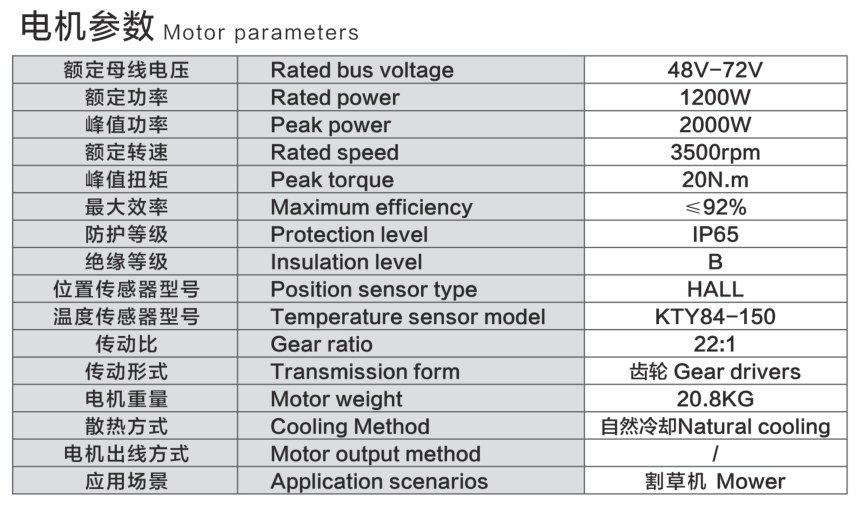

Technical Specifications / 参数表

110 Drive Assembly parameters

Interested in this motor?

Contact us for pricing, samples and customization.
